SDLG Equipment

Initially founded in 1972, Shandong Lingong Construction Machinery Co., Ltd. (SDLG) is a national large-sized backbone enterprise in construction machinery industry and is listed in Top 100 China’s Enterprises in Mechanical Industry and listed as a national-level high-tech enterprise. The leading products include earth-moving scraper and excavator series, road machinery series, mining truck series, and small-sized construction machinery series.SDLG undertakes the core concept of “Reliability in Action” and strives through continual innovation to provide more reliable products and services and maximize the sustained value return to the customers. SDLG established state-level R&D center and postdoctoral workstation, undertook multiple scientific research tasks of National 863 Program and provincial-level programs, and obtained more than 50 national patents. SDLG maintains good cooperation relationship with domestic key colleges and universities and research institutes and established open and efficient technical cooperation and innovation system.SDLG boasts advanced production facilities and complete management system, passed the ISO 9001 quality management system certification, and obtained the Export Product Quality License and the qualification certificate for import & export enterprise. With high quality and excellent services, the SDLG’s products are distributed to all regions nationwide and are exported to scores of countries and regions.“Building a globalized SDLG and establishing a trustworthy brand”, SDLG will always insist on the product diversification strategy centered on construction machinery, push the continual improvement, continually enrich the production lineup, promote the product quality and brand reputation, and build a domestic first-class and international renowned construction machinery base.

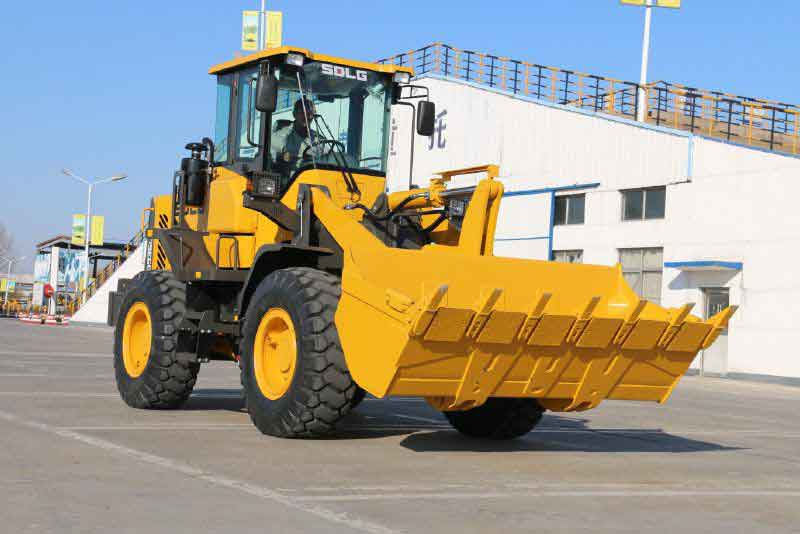

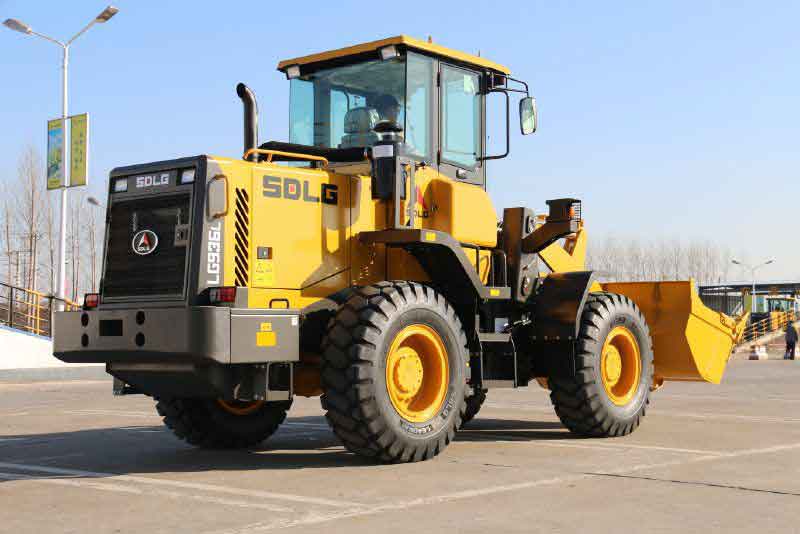

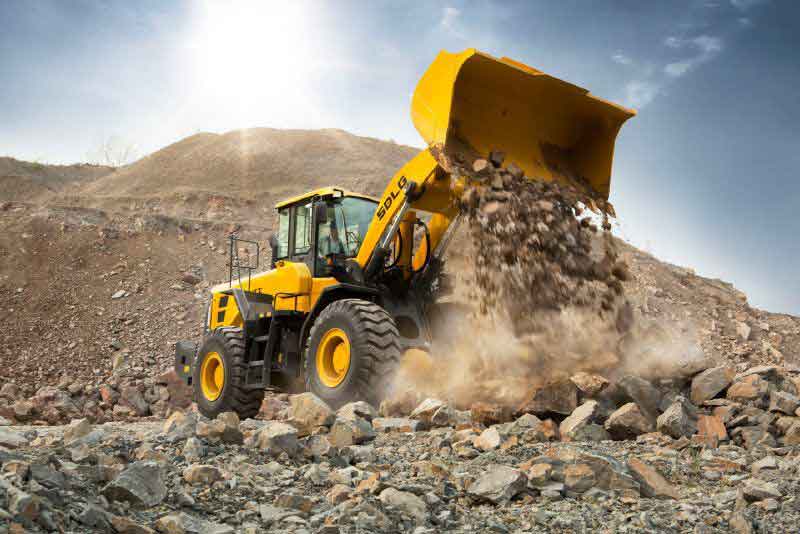

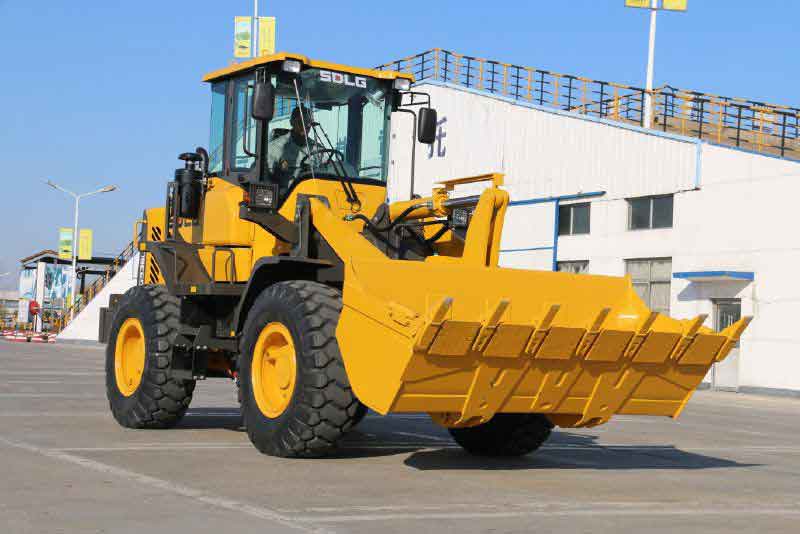

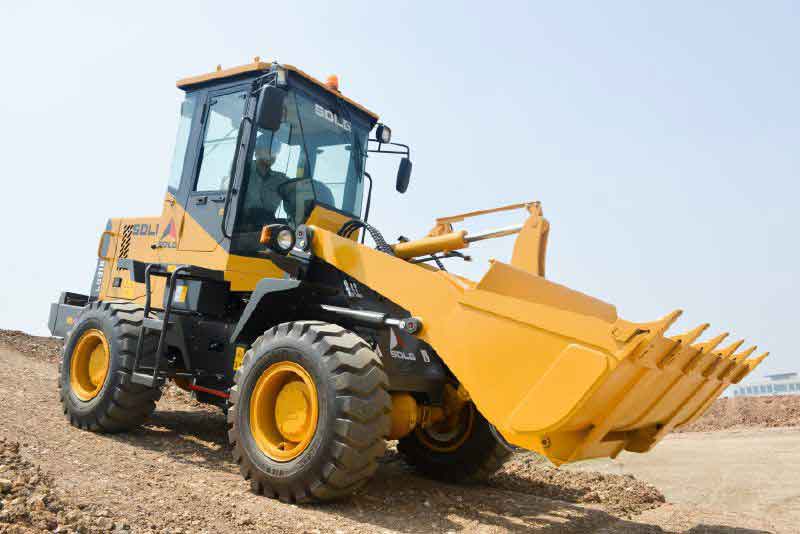

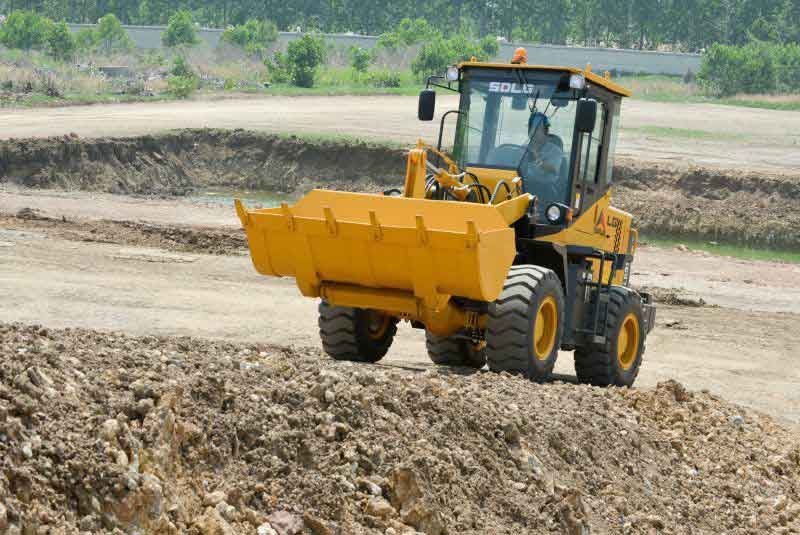

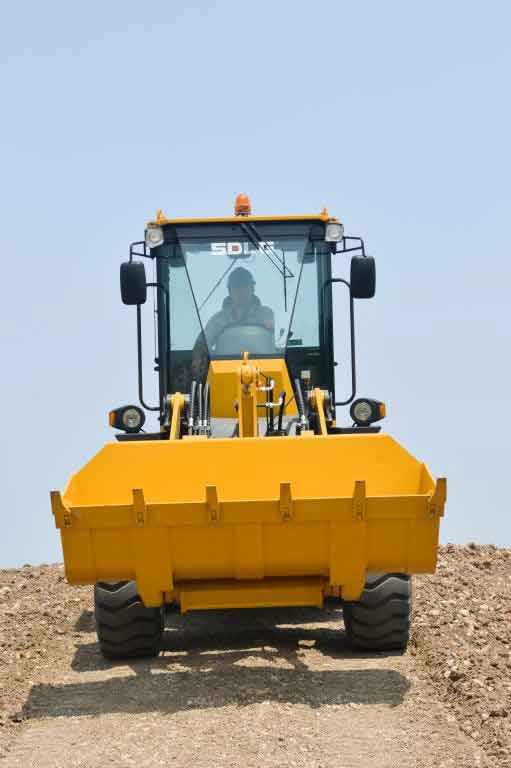

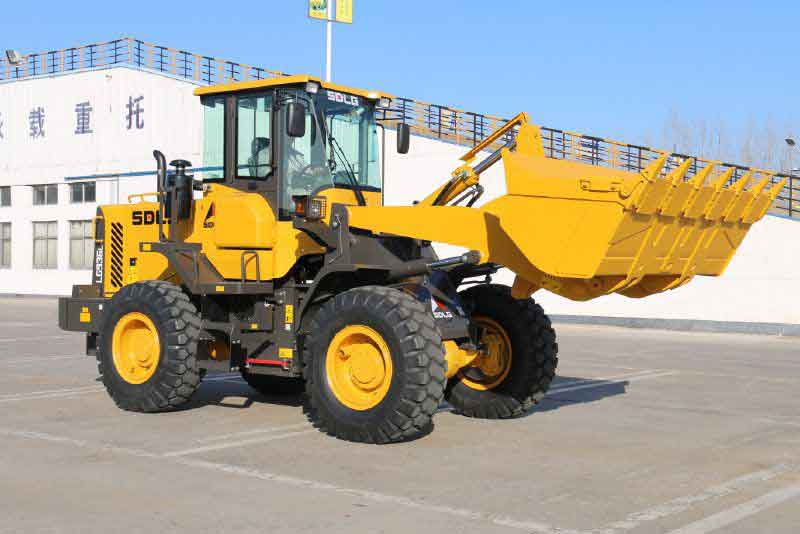

Wheel Loader
Model Engine Made Engine Power Bucket Capacity Rated Load Max. Dump Height Wheel Base Dimension(L×W×H)

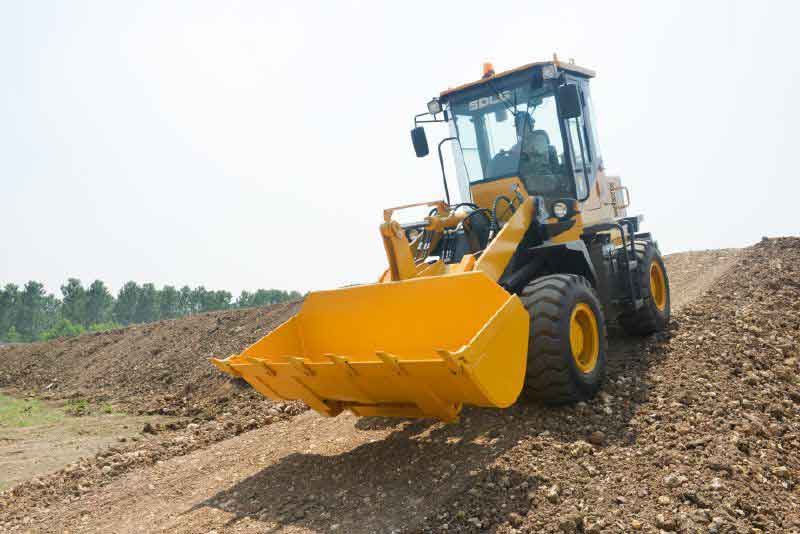

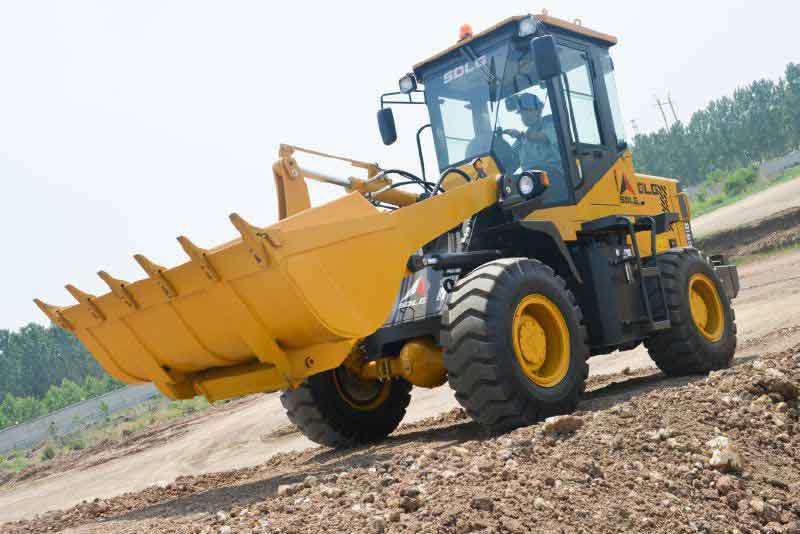

LG918 Yuchai 78.8 Hp@2400 Rpm 1-1.4 Cum 1800 Kg 2510-2800 Mm 2260 Mm 5790×2140×2920 Mm

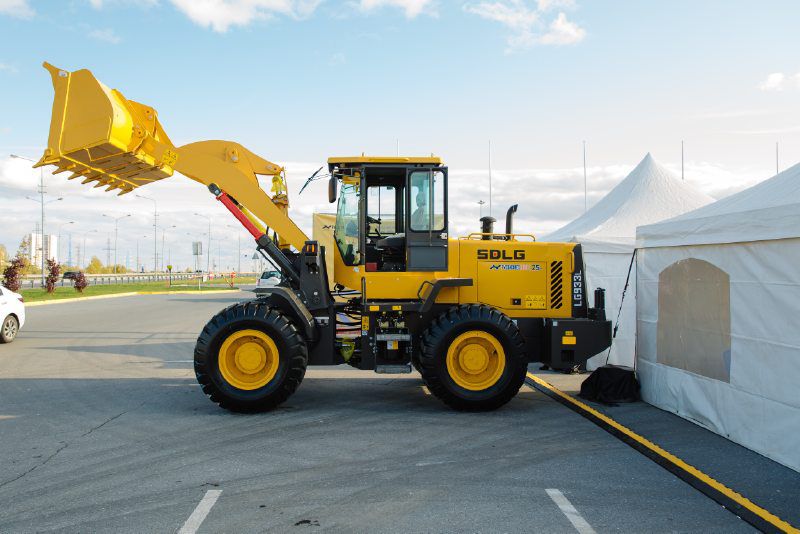

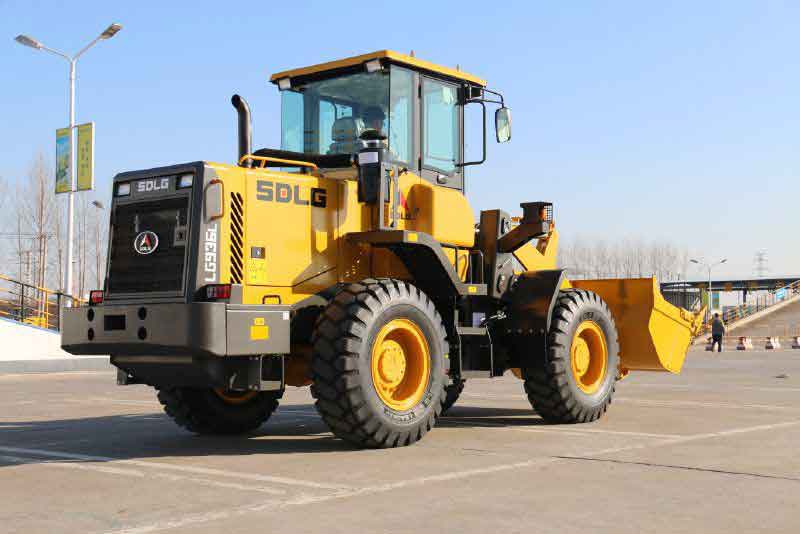

LG936L Weichai-Deutz 125.2 Hp@2200 Rpm 1.8 Cum 3000 Kg 2950 Mm 2850 Mm 7100×2520×3170 Mm

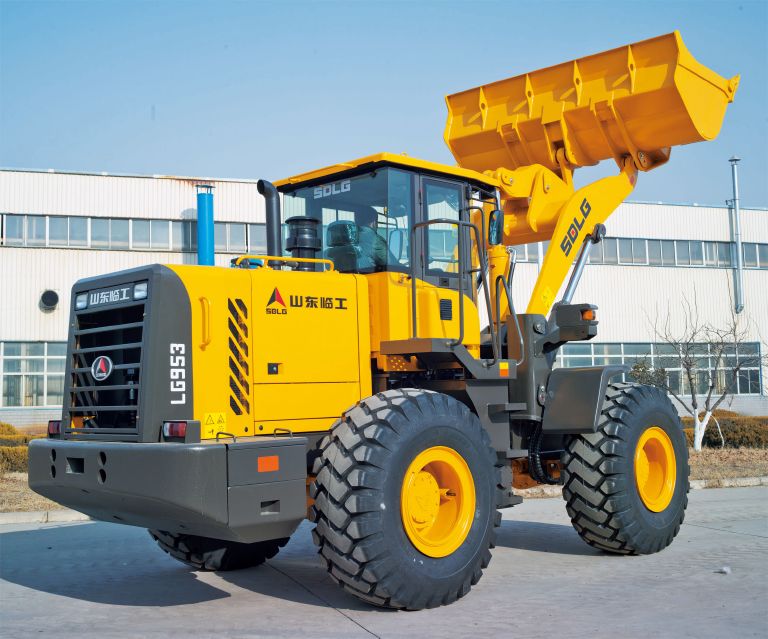

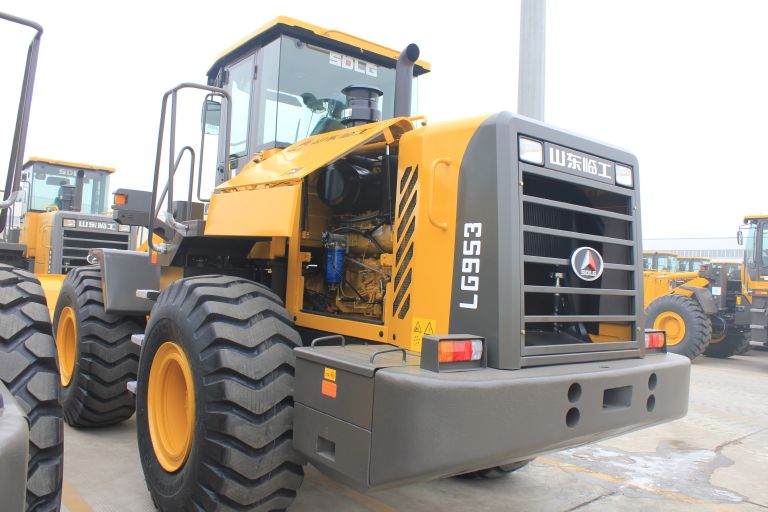

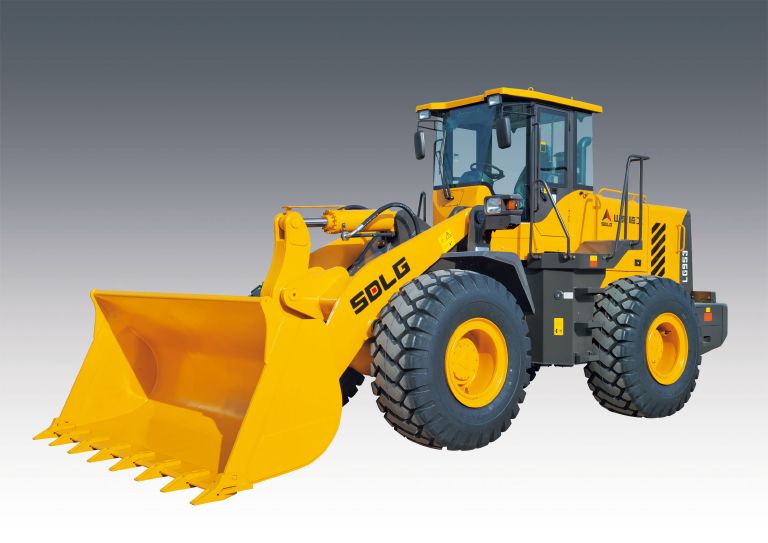

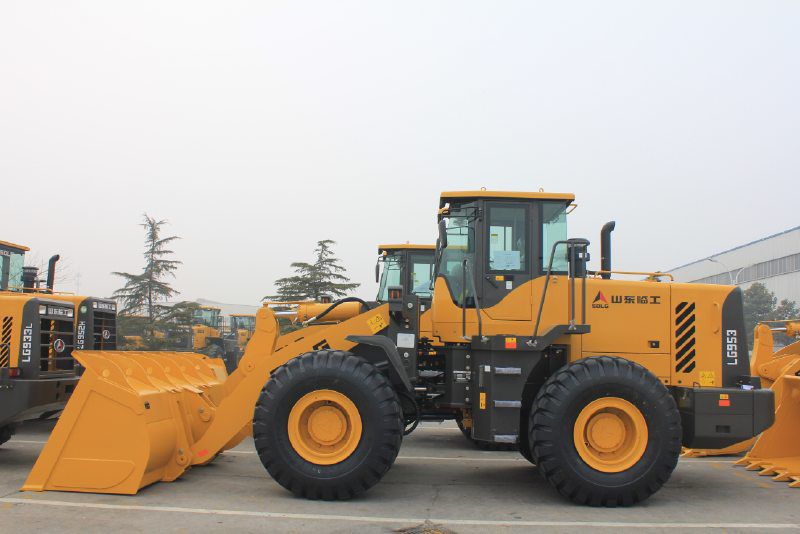

LG953 Weichai 220.5 Hp@2000 Rpm 3.0 Cum 5000 Kg 3080 Mm 3000 Mm 7794×3024×3368 Mm

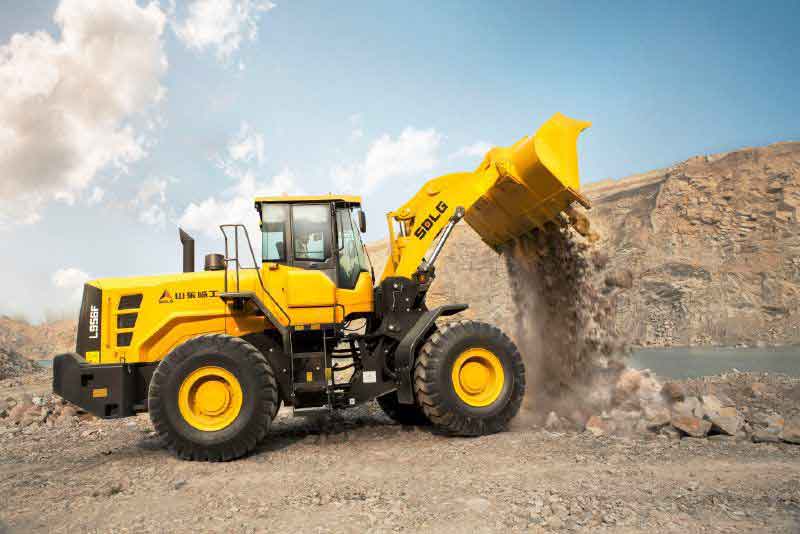

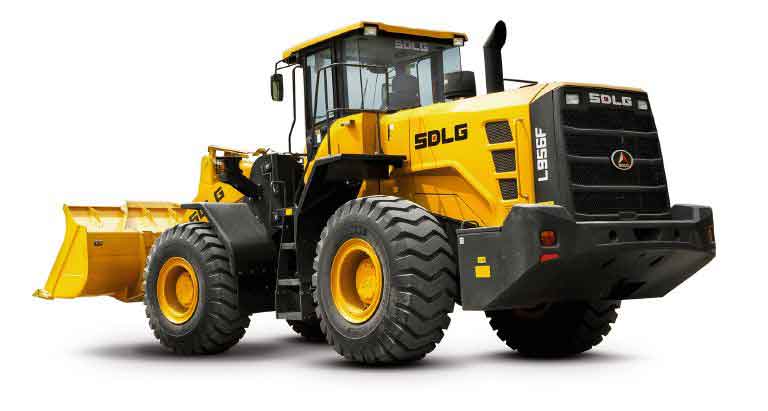

L956F Weichai 220.5 Hp@2000 Rpm 3.0 Cum 5000 Kg 3100 Mm 3200 Mm 8280×3024×3380 Mm

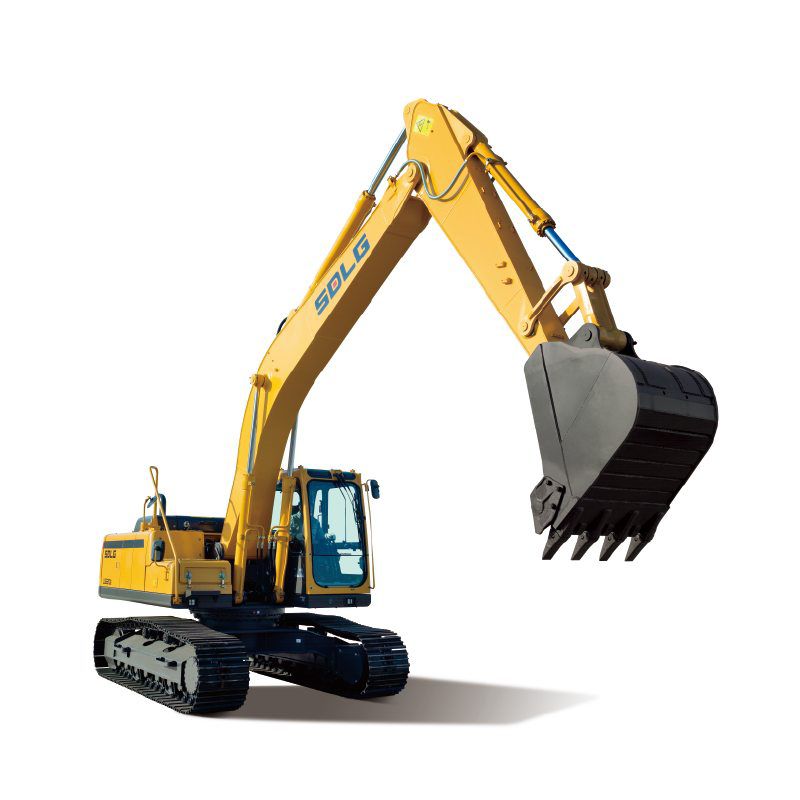

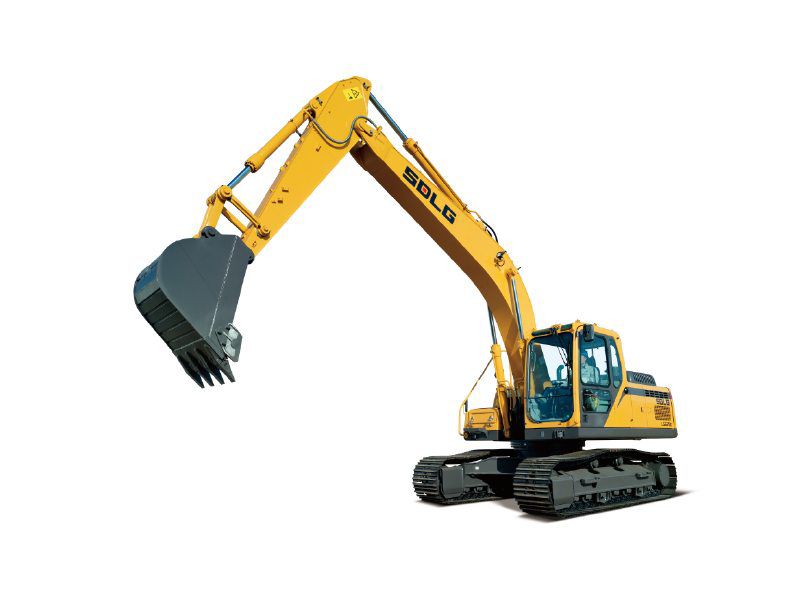

Model Engine Made Engine Power Bucket Capacity Weight Max. Excavation Force Max. Digging Radious Max. Dump Height Dimension(L×W×H)

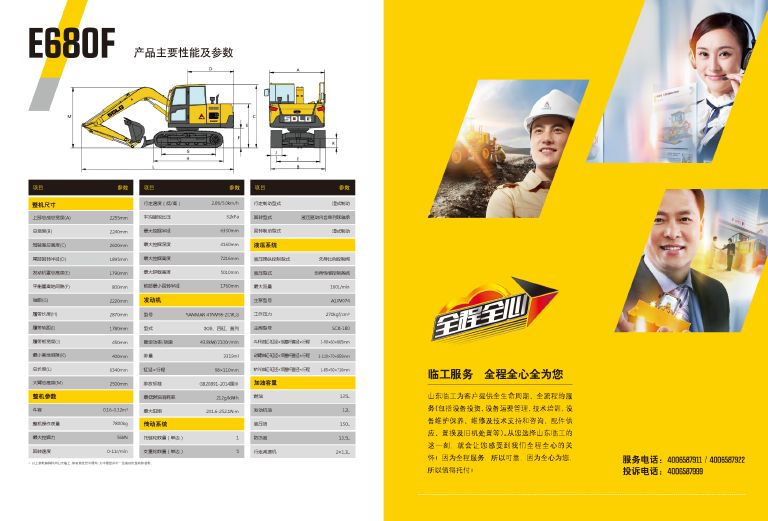

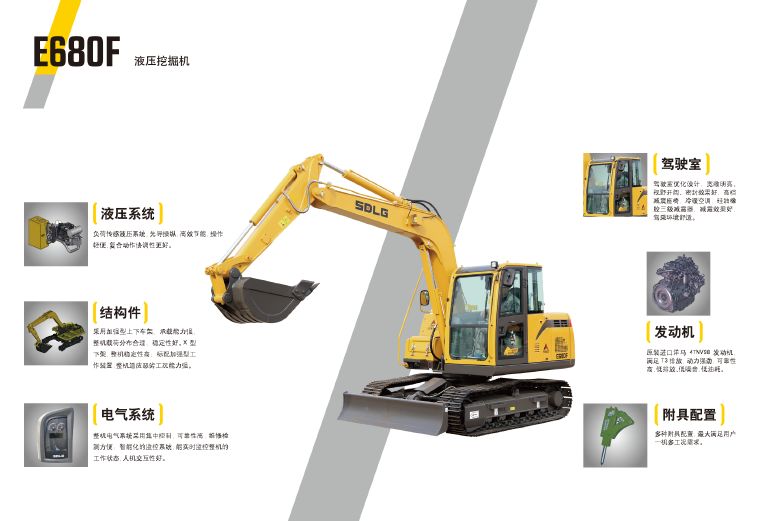

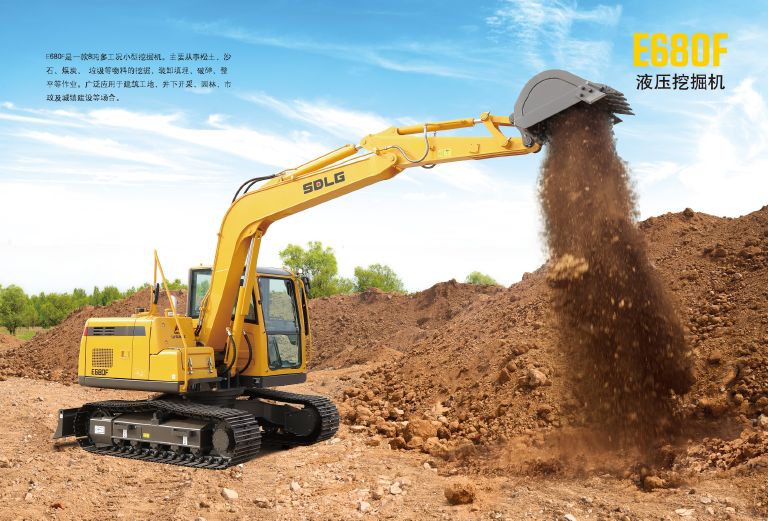

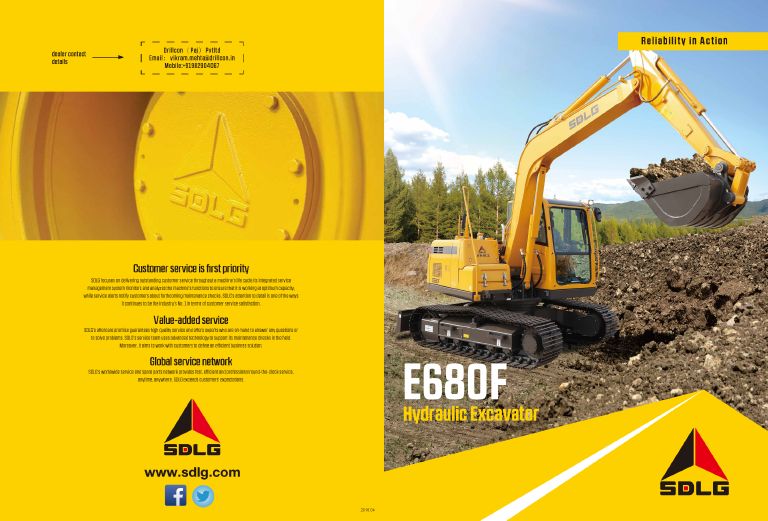

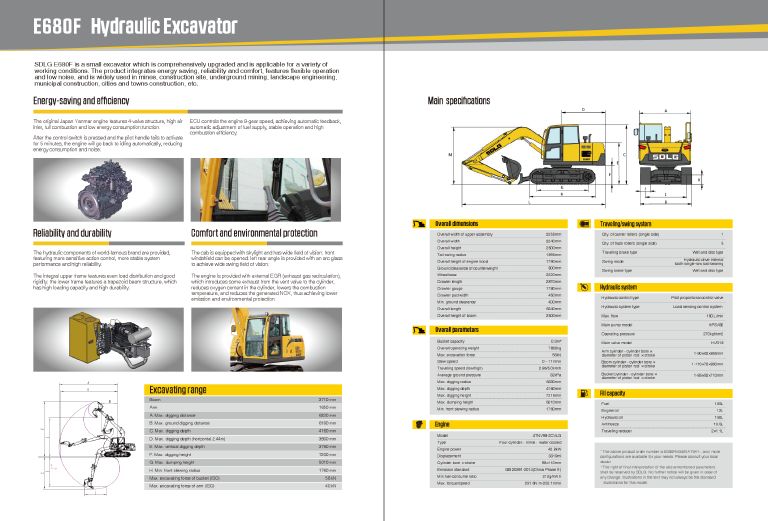

E680F Yanmar 57.9 Hp@2100 Rpm 0.32 Cum 7800 Kg 56 KN 6330 Mm 5010 Mm 6340×2240×2600 Mm
LG6135E Deutz 88.6 Hp@2100 Rpm 0.5 Cum 12500 Kg 85 KN 7790 Mm 5625 Mm 4260×2490×2830 Mm
LG6150E Deutz 92.8 Hp@2100 Rpm 0.7 Cum 13800 Kg 98.1 KN 8330 Mm 5980 Mm 7770×2590×2830 Mm

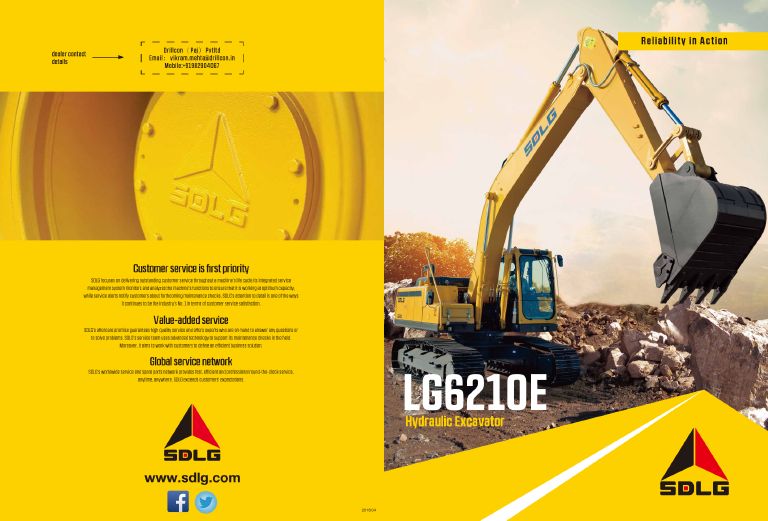

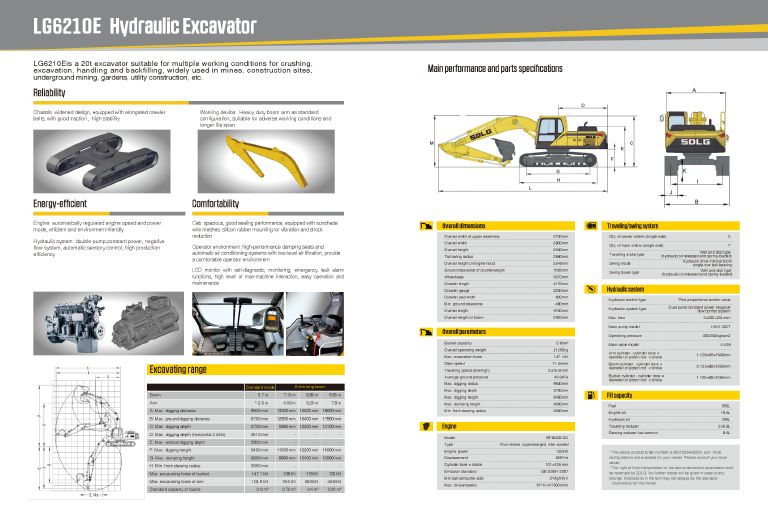

LG6210E Deutz 160.9 Hp@2000 Rpm 0.9 Cum 21250 Kg 147.1 KN 9940 Mm 6650 Mm 9700×2800×2940 Mm
LG6235E Deutz 172.7 Hp@2000 Rpm 1.1 Cum 22300 Kg 147.1 KN 9940 Mm 6650 Mm 9700×2990×2940 Mm

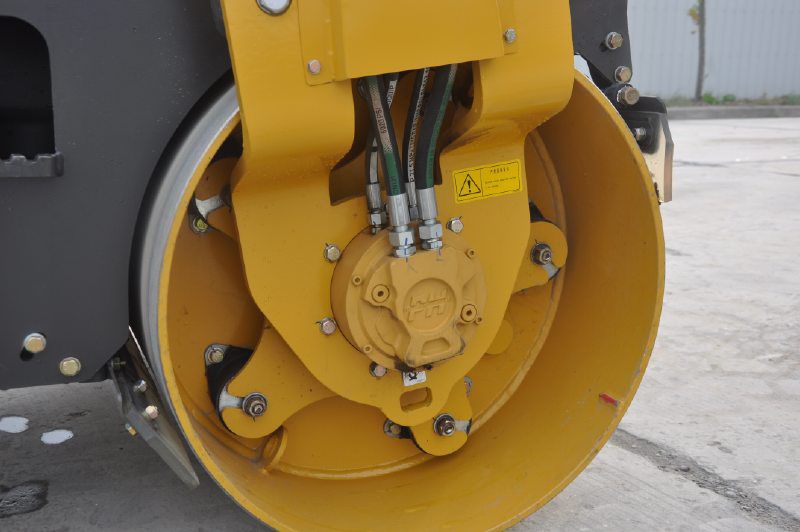

Model Engine Made Engine Power Operating Weight Nominal Amplitude(High/Low) Exciting Force(High/Low) Vibration Frequency

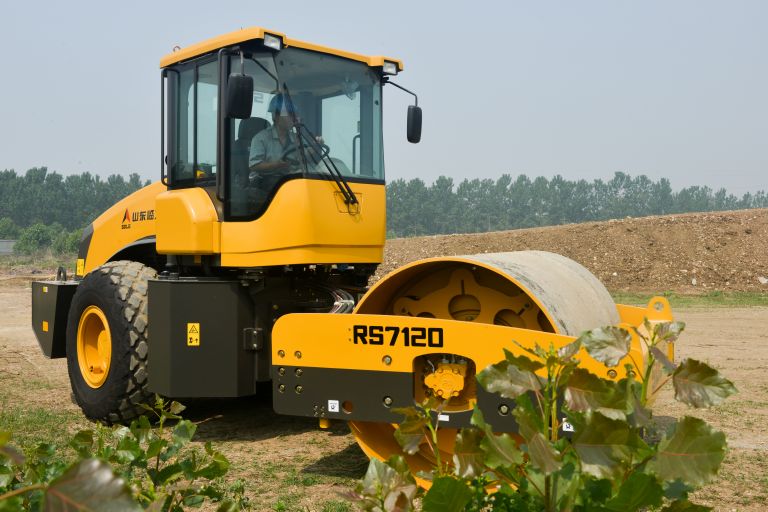

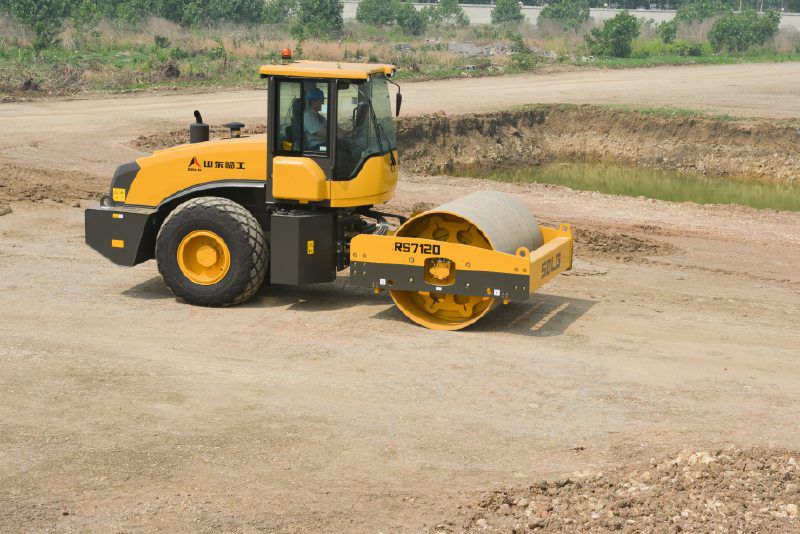

RS7120 Weichai 133.3 Hp@2000 Rpm 12000Kg 1.9/0.95 Mm 270/184 KN 30/35 HZ

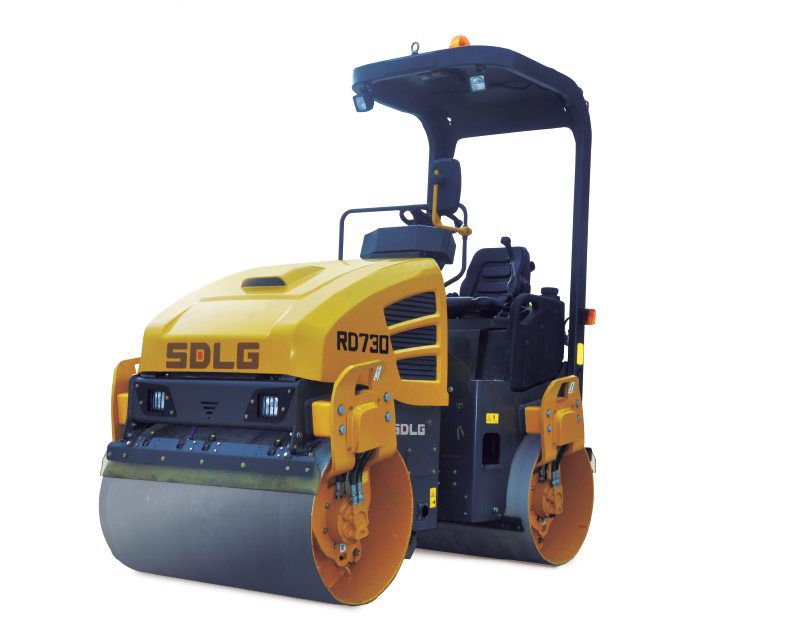

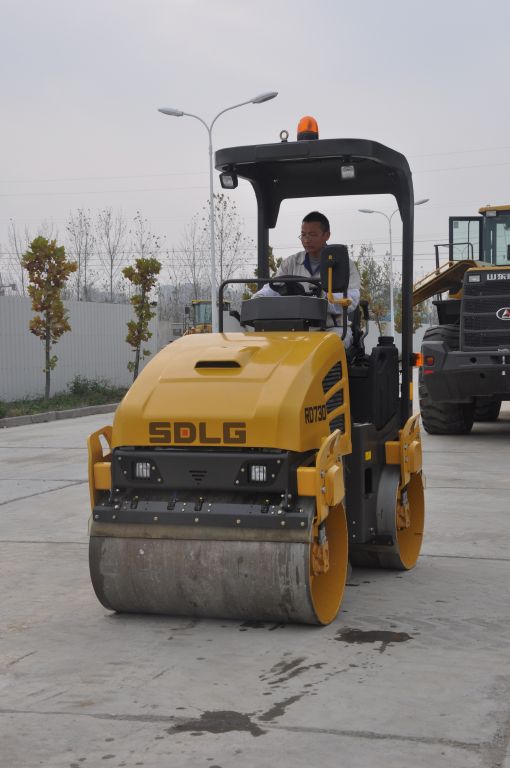

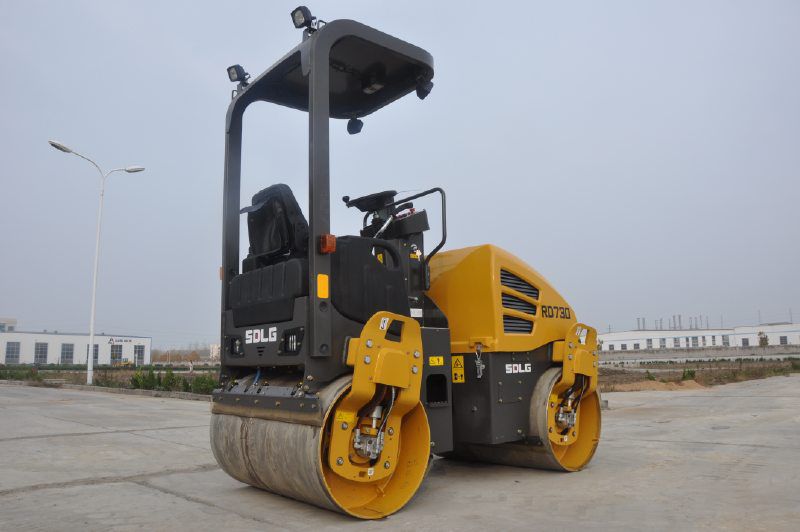

RD730 KUBOTA 33.25 Hp@2400 Rpm 3070 Kg 0.5 Mm 46/31 KN 55/67 Hz

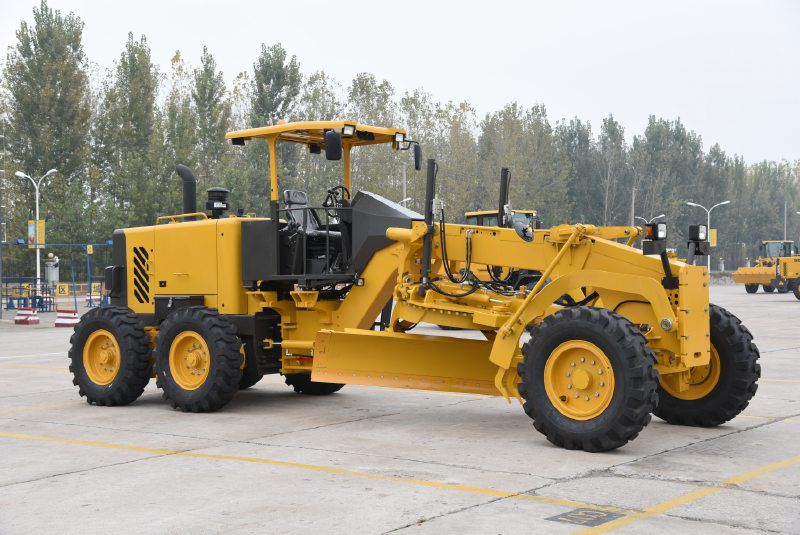

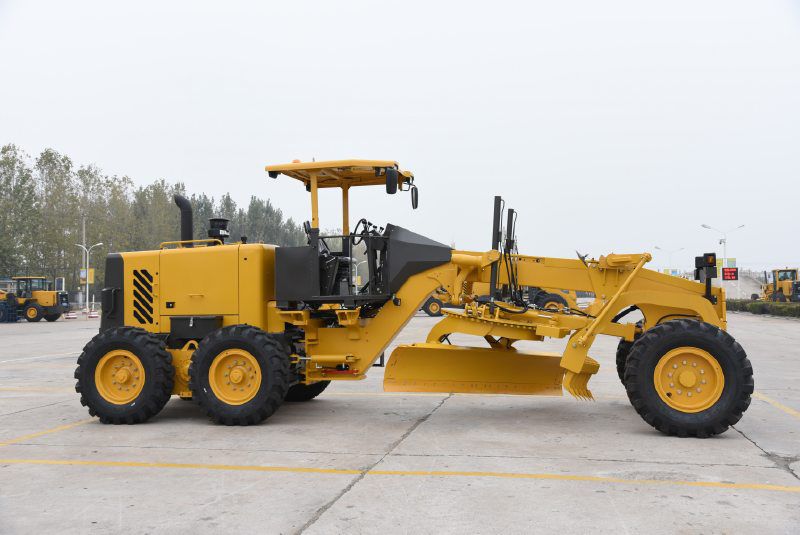

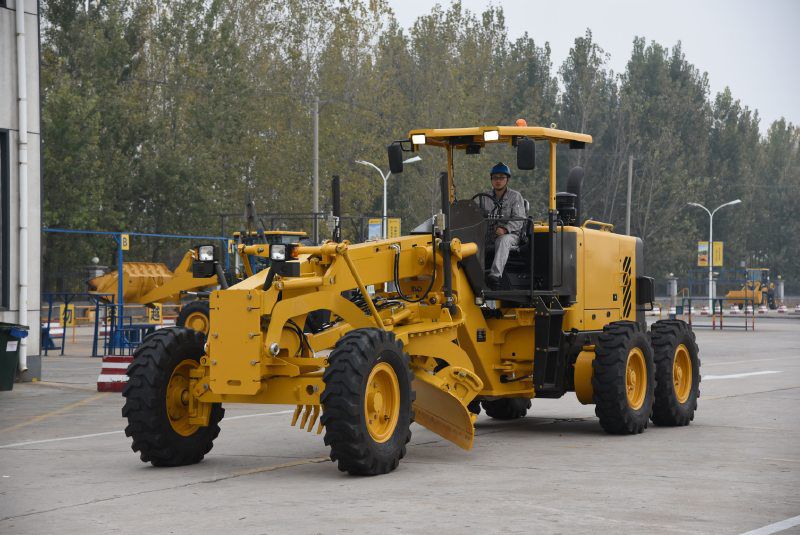

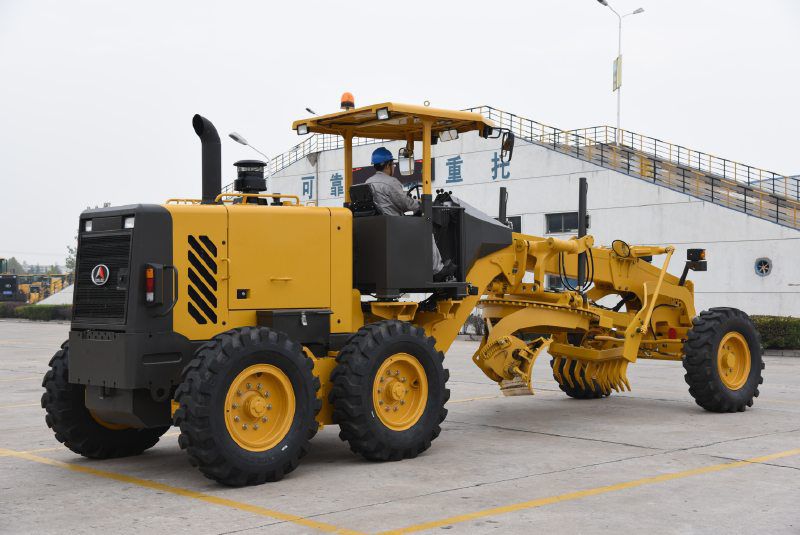

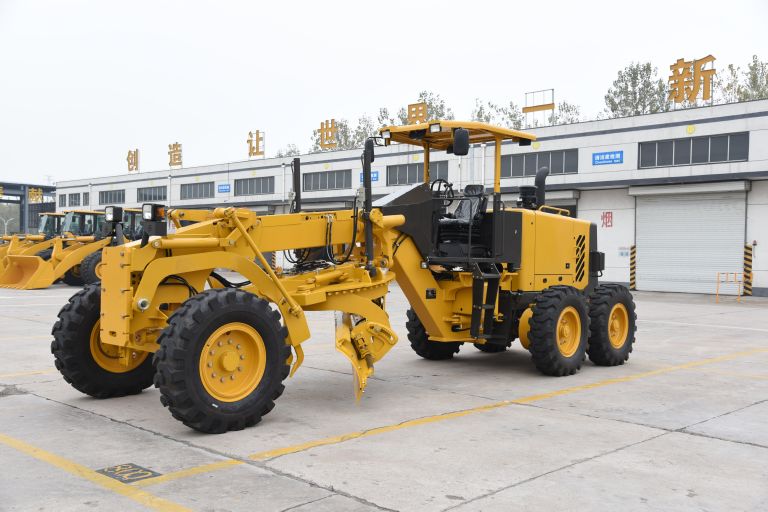

Motor Grader
Model Engine Made Engine Power Operating Weight Cutter Size(L×H×Thickness) Cutter Diameter Blade Size Max Speed (Forward/Reverse) Transmission Gears
G9138 Weichai 142.8 Hp @2200 Rpm 12100 Kg 3048×565×16 Mm 1375 Mm 11 Feet 34 Km/H SDLG, Volvo Technology 6 Forward And 3 Reverse
G9165 Weichai 175.4 Hp @2200 Rpm 14600 Kg 3658×635×25 Mm 1626 Mm 12 Feet 40 Km/H SDLG, Volvo Technology 6 Forward And 3 Reverse
G9180 Weichai 190.4 Hp @2200 Rpm 15300 Kg 3962×635×25 Mm 1626 Mm 13 Feet 38 Km/H SDLG, Volvo Technology 6 Forward And 3 Reverse
