ACE - ACTION CONSTRUCTION EQUIPMENT LIMITED Is India’s leading material handling and construction equipment manufacturing company with a majority market share in Mobile Cranes and Tower Cranes segment. In addition to Mobile Cranes, ACE also offers Mobile/Fixed Tower Cranes, Crawler Cranes, Truck Mounted Cranes, Lorry Loaders, Backhoe Loaders/Loaders, Vibratory Rollers, Forklifts, Tractors & Harvesters and other Construction Equipment. ACE has a consolidated presence in all major Infrastructure, Construction, Heavy Engineering and Industrial Projects across the country. ACE is promoted and managed by professionals having rich experience in Construction Equipment domain. It was established in the year 1995, today ACE has full-fledged state of the art production facilities based at industrial townships of Faridabad (Haryana). These Plants are fully equipped to produce around 12000 Construction Equipment and 9000 Tractors annually. The workforce comprises of qualified professionals having undaunted commitment towards total quality management and our strength lies in standardization of class products. We are dedicated to provide our customers with latest technology Construction Equipment and efficient sales and product support aimed at satisfying their real needs. The policy of responding with speed and expertise has been rewarded over the years in the form of repeat business resulting in constant growth making us the leading company in the Mobile Cranes, Tower Cranes and Construction Equipment sector in the country. Another factor driving our growth has been the versatility of our equipment to satisfy a vast range of possible applications. Our equipment has been successfully used in many sectors like Infrastructure Construction, Power Projects, Ports & Shipyards, Dams, Metro Rail, Roads, Mining, Steel Industry, Engineering Industry, Railways, Cement, Petroleum, Defence, Chemicals & Fertilizer Plants, Warehousing, Logistics, Building Construction etc., to name a few.

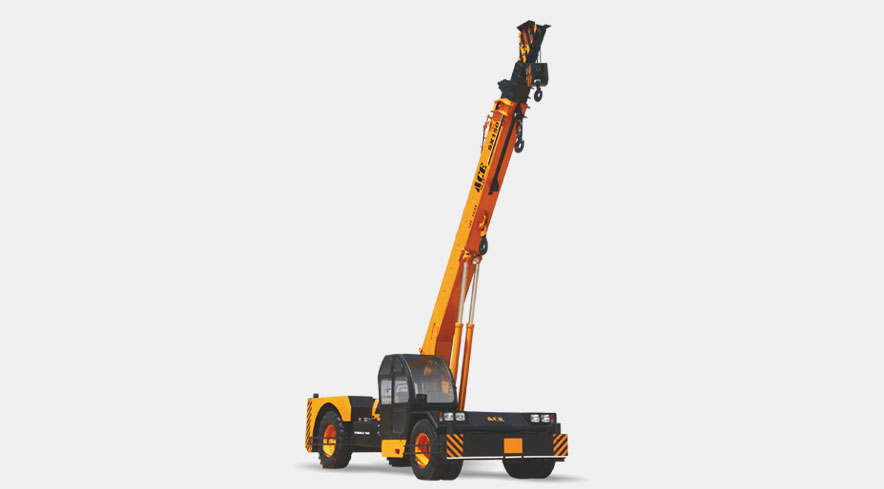

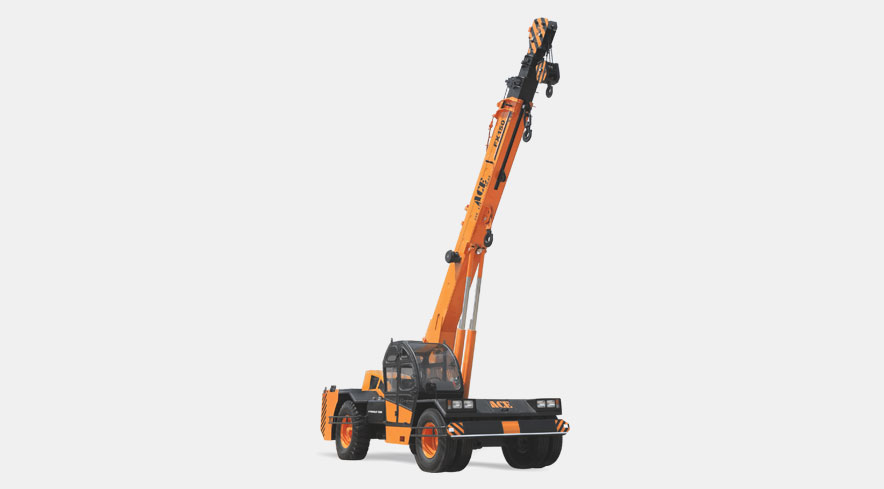

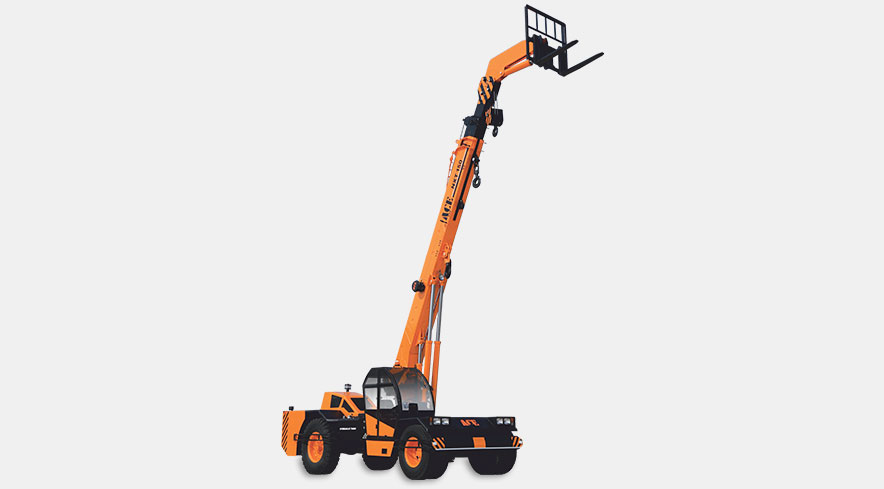

| Mobile Cranes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PICK AND CARRY CRANES | ||||||||||
| Model | LIFTING CAPACITY | ENGINE | Engine Power | Transmission | Top Speed | Lifting Height | Telescopic Boom |
Operating Weight |
||

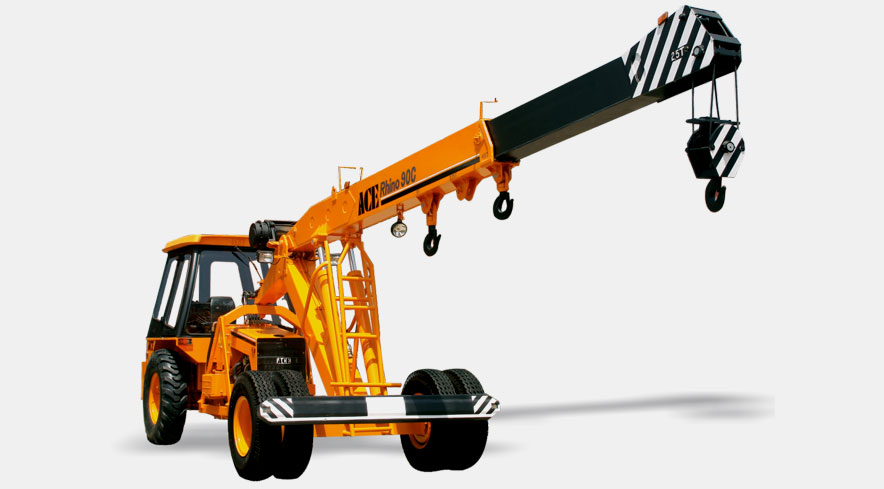

| RHINO 90C | 9 Tonnes - SWL ( safe working load) 11 Tonnes - TL (Fully hydraulic telescopic) |
Simpson's S433 (I) F1 (CEV BS-III), 4 cylinder, water cooled diesel engine or suitable equivalent engine | 48 hp@2200 rpm | Sliding mesh with 6 forward and 2 reverse speeds and high low range selector | 29 KMPH without load | 9 Mtrs | Two part boom with hydraulically operated extension of 1800 mm stroke | 7750 kgs | ||

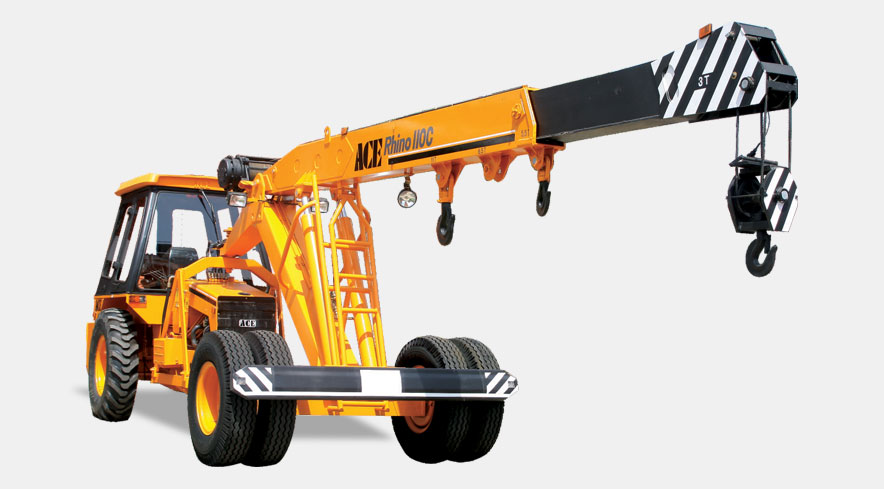

| RHINO 110C | 11 Tonnes | Simpson's S433 (I) F1 (CEV BS-III), 4 cylinder, water cooled diesel engine or suitable equivalent engine | 48 hp@2200 rpm | Sliding mesh with 6 forward and 2 reverse speeds and high low range selector | 29 KMPH without load | 9 Mtrs | Two part boom with hydraulically operated extension of 1800 mm stroke | 8150 kgs | ||
| 12 XW | 12 Tonnes | Simpson's S433 (I) F1 (CEV BS-III), 4 cylinder, water cooled diesel engine or suitable equivalent engine | 48 hp@2200 rpm | Heavy duty, sliding mesh with 6 forward and 2 reverse speeds and high low range selector | 28 KMPH without load | 9.5 Mtrs (2 part non slotted) 11.25 Mtrs ( 3 part fitted boom) 12.9 Mtrs ( 3 part fitted) |
Two part boom with hydraulically operated extension. | 9250 kgs (for 2 part) 9800 kgs (for 3 part - 11.25 Mtrs) |
||

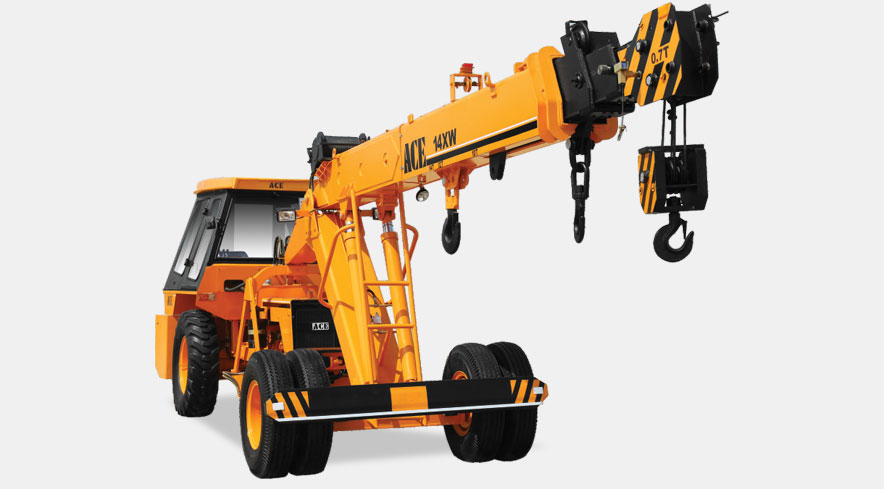

| 14 XW | 14 Tonnes | Simpson's S433 (I) F1 (CEV BS-III), 4 cylinder, water cooled diesel engine or suitable equivalent engine | 48 hp@2200 rpm | Sliding mesh with 6 forward and 2 reverse speeds and high low range selector | 28 KMPH without load | 11.25-12.9 Mtrs (3 part fitted boom) 15.5 Mtrs ( 4 part fitted boom and one manual extension) |
Three part boom with hydraulically operated extension (11.25 Mtrs height) | 12000 kgs | ||

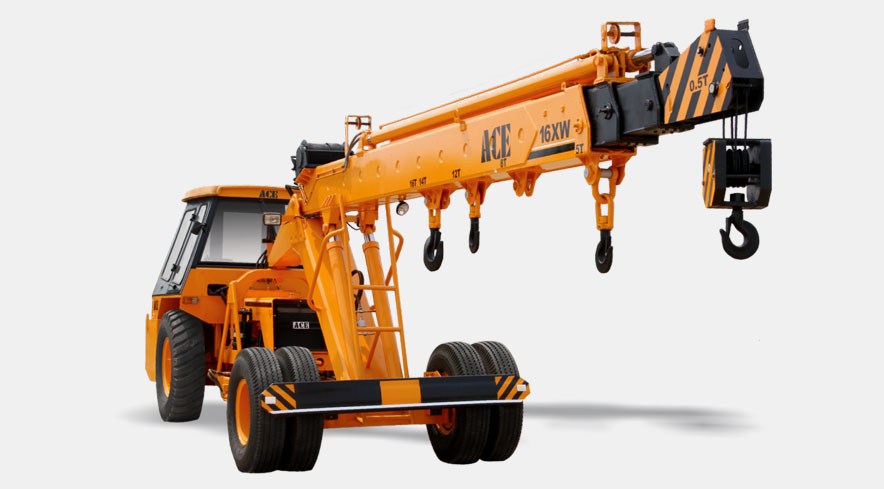

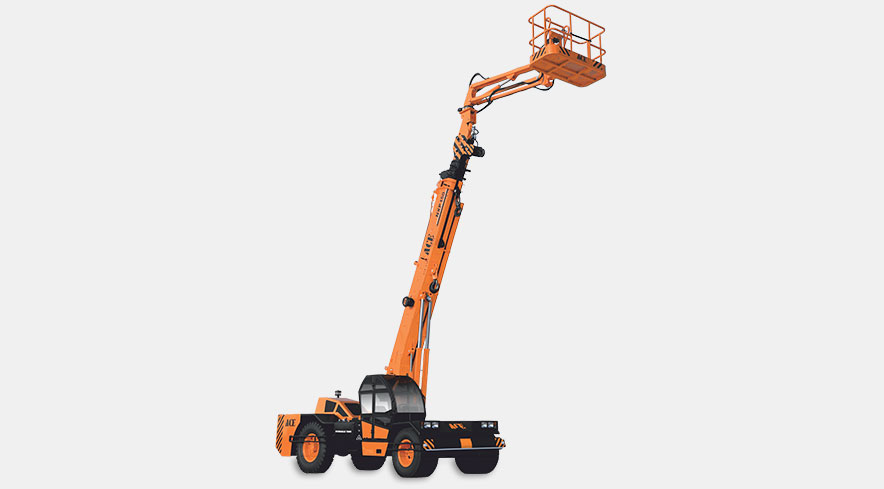

| 16 XW | 16 Tonnes | ACE-A65 (CEV BS-III), 4 cylinder, water cooled diesel engine | 61 hp@2200 rpm | Heavy duty, sliding mesh with 6 forward and 2 reverse speeds and high low range selector | 28 KMPH without load | 20 Mtrs (4 part non slotted) 11.75 Mtrs ( 3 part non s;otted) |
Three part boom with hydraulically operated extension. | 14200 kgs | ||
| Mobile Cranes | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|

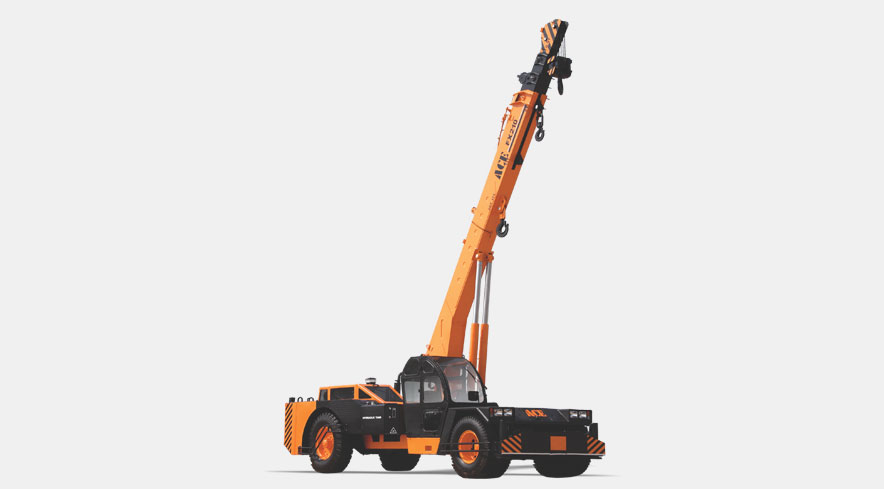

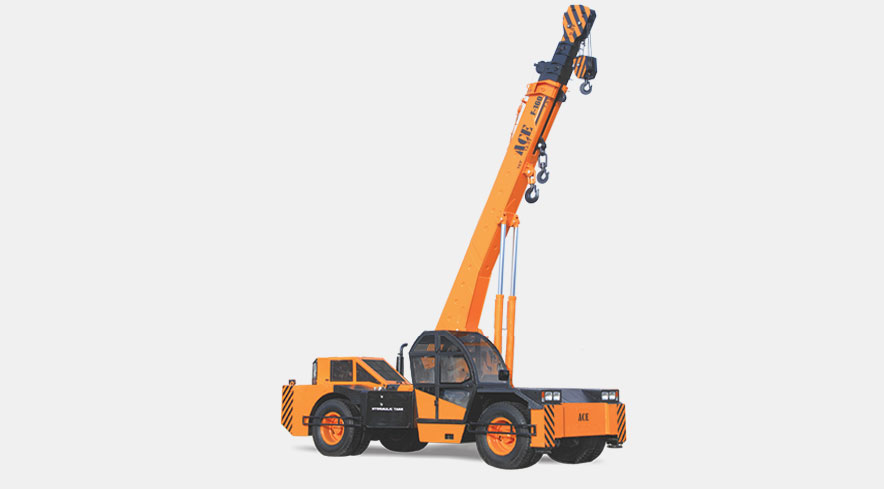

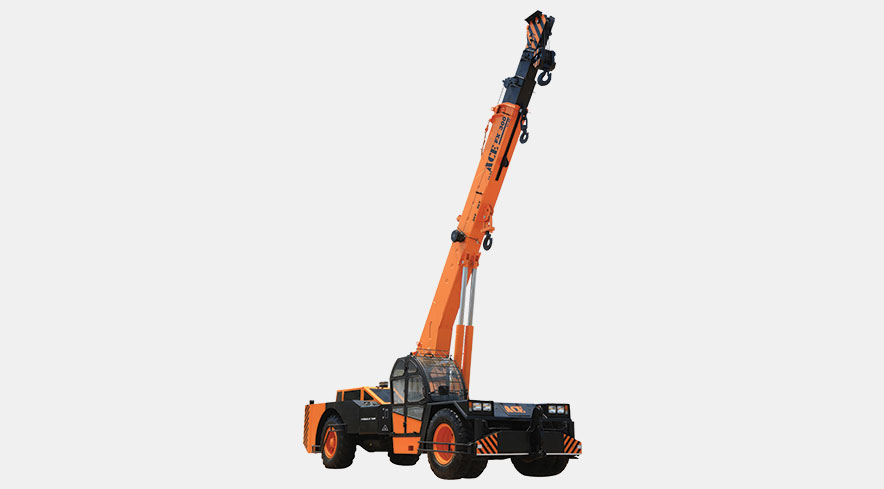

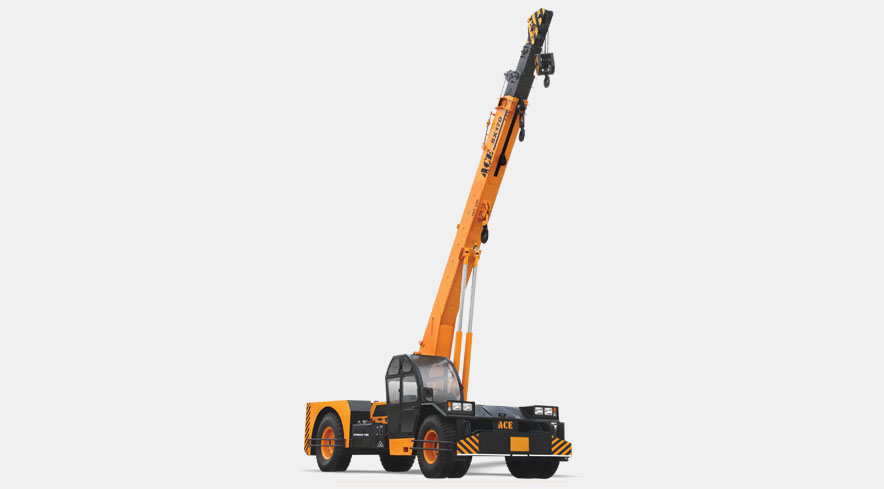

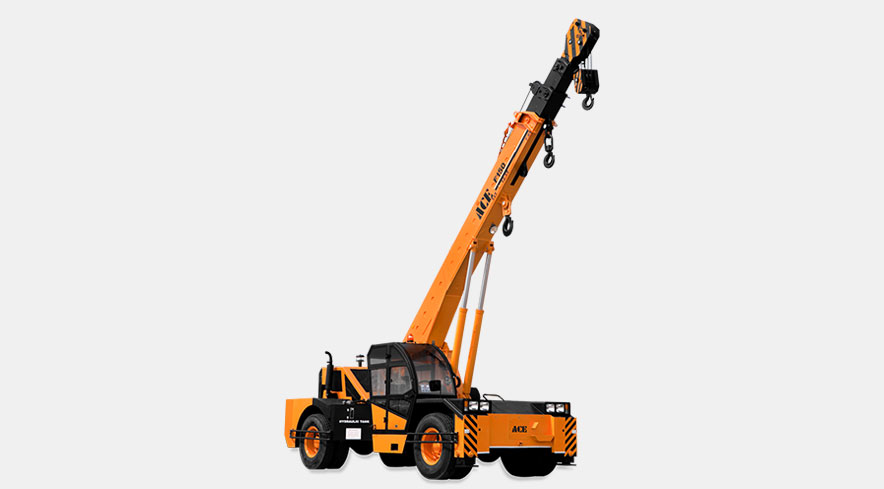

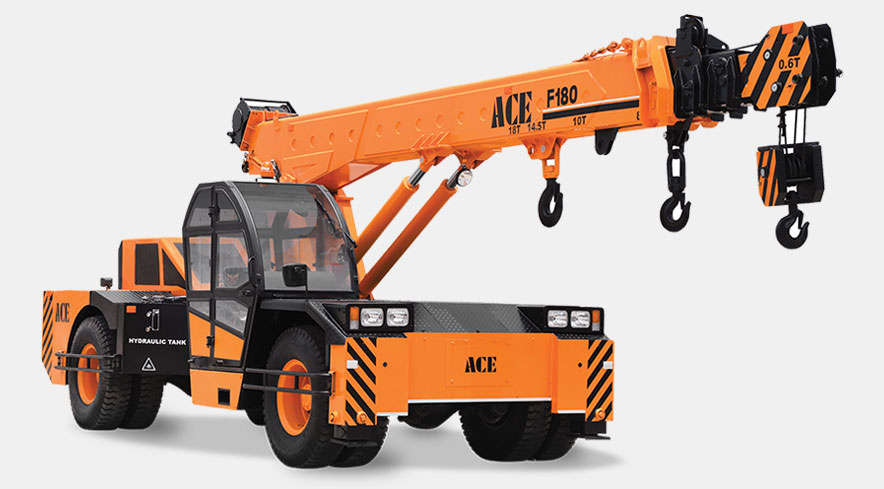

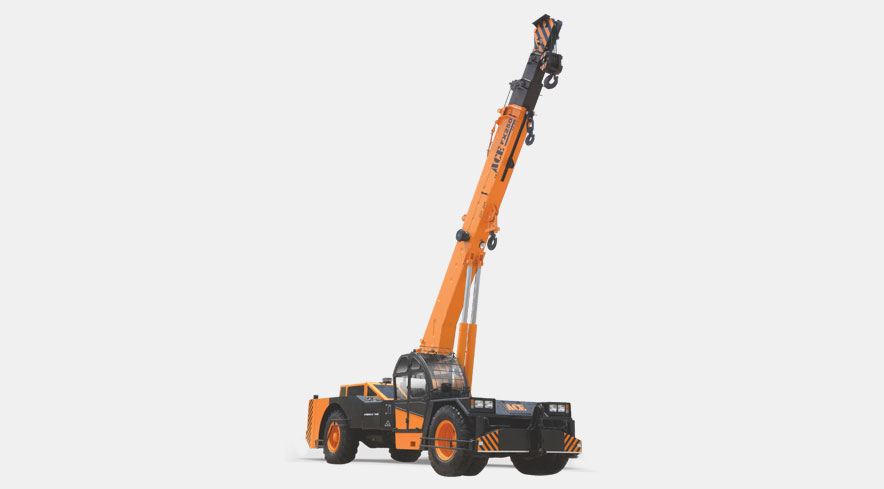

| NEXTGEN PICK AND CARRY CRANES | ||||||||||
| Model | LIFTING CAPACITY | ENGINE | Engine Power | Transmission | Top Speed | Lifting Height | Telescopic Boom |
Operating Weight |
||

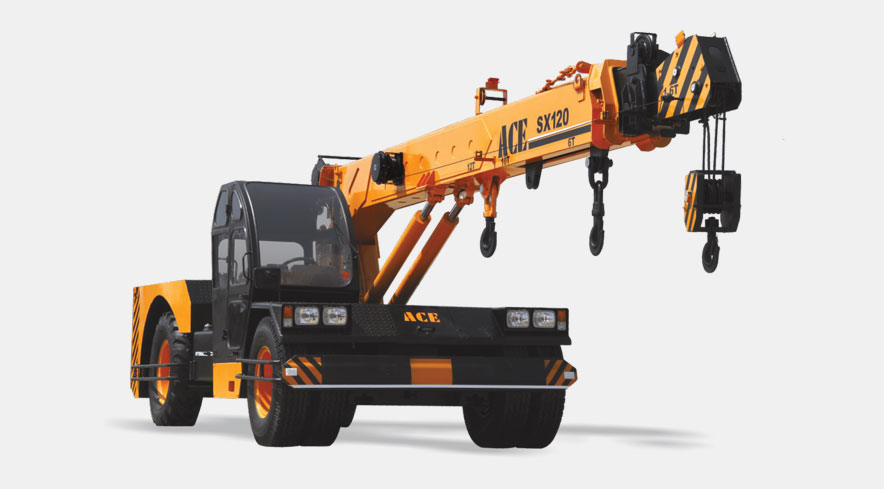

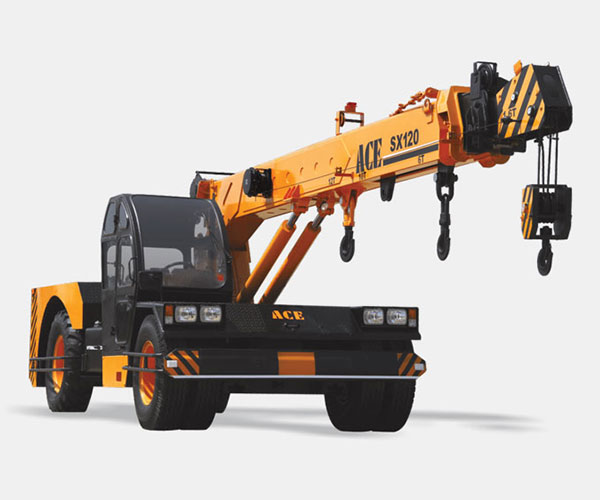

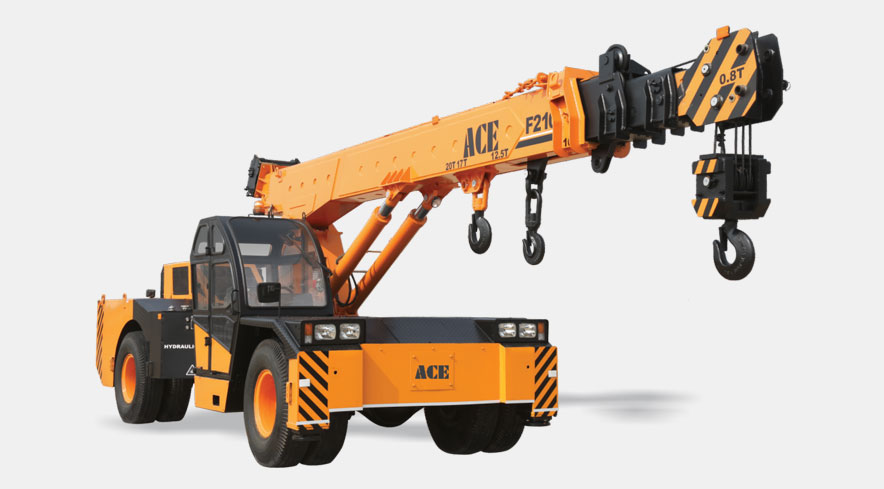

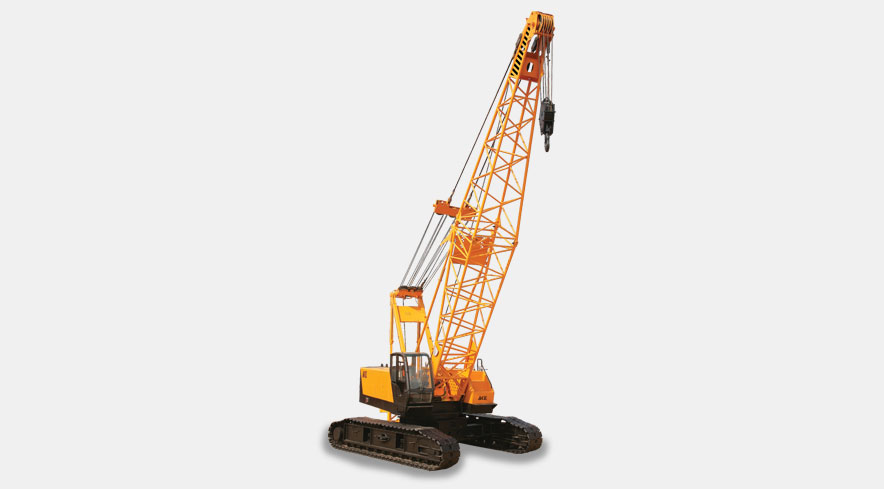

| SX 120 | 12 Tonnes | KOEL/ACE WATER COOLED DIESEL ENGINE | 49.5 hp@2200 rpm | Heavy duty sliding mesh with 6 forward and 2 reverse speeds and high low range selector | 29 KMPH without load | 11.0-12.6 Mtrs | Three part slotted boom with hydraulically operated extension(11 mtrs height) | 13300 kgs | ||
| SX 150 | 14 Tonnes | KOEL/ACE WATER COOLED DIESEL ENGINE | 49.5 hp@2200 rpm | Heavy duty sliding mesh with 6 forward and 2 reverse speeds and high low range selector | 29 KMPH without load | 11-15.4 Mtrs | Three part slotted boom with hydraulically operated synchronized extension(11 mtrs height) | 14200 kgs | ||
| SX 170 | 16 Tonnes | KOEL 4R810 NA (BS-III),4 CYLINDER WATER COOLED DIESEL ENGINE OR SUITABLE ENGINE | 49.5 hp@2200 rpm | Heavy duty sliding mesh with 6 forward and 2 reverse speeds and high low range selector | 29 KMPH without load | 11.2-18.2 Mtrs | Three part slotted boom with hydraulically operated synchronized extension(11.2 mtrs height) | 14900 kgs | ||
| FX 150 | 15 Tonnes | TATA 4 CYLINDER WATER COOLED DIESEL ENGINE OR SUITABLE ENGINE | 49 hp@2200 rpm | Heavy duty TATA synchronized transmission with 8 forward and 2 reverse speeds and high low drive selector for creep speed | 32 KMPH without load | 11-15.3 Mtrs | Three part slotted boom with hydraulically operated synchronized extensions | Front axle- 4900 kgs Rear axle- 9700 kgs Total weight- 14600kgs |
||
| FX 210 | 20 Tonnes | ASHOK LEYLAND 4 CYLINDER WATER COOLED DIESEL ENGINE OR EQUIVALENT TATA ENGINE | 101 hp@2200 rpm | Heavy duty synchronized with 8 forward and 2 reverse speeds and high low drive selector for creep speed | 35 KMPH without load | 11.6-18.3 Mtrs | Three part slotted boom with hydraulically operated synchronized extension(11.6 mtrs height) | Front axle- 7200 kgs Rear axle- 10100 kgs Total weight- 17300kgs |
||
| FX 230 | 23 Tonnes | ASHOK LEYLAND 4 CYLINDER WATER COOLED DIESEL ENGINE OR EQUIVALENT TATA ENGINE | 101 hp@2200 rpm | Heavy duty synchronized with 8 forward and 2 reverse speeds and high low drive selector for creep speed | 35 KMPH without load | 11.6-18.3 Mtrs | Three part slotted boom with hydraulically operated synchronized extension(11.6 mtrs height) | Front axle- 9725 kgs Rear axle- 10200 kgs Total weight- 19925kgs |
||
| FX 250 | 25 Tonnes | ASHOK LEYLAND 6 CYLINDER WATER COOLED DIESEL ENGINE OR EQUIVALENT | 133 hp@2300 rpm | Heavy duty synchronized with 8 forward and 2 reverse speeds and high low drive selector for creep speed | 35 KMPH without load | 12-19.2 Mtrs | Three part slotted boom with hydraulically operated synchronized extension(12 mtrs height) | Front axle- 10000 kgs Rear axle- 10200 kgs Total weight- 20200kgs |
||
| F 160 | 16 Tonnes | TATA (BS3 CEV),4 CYLINDER WATER COOLED TURBO CHARGED AND AFTER COOLED ENGINE OR SUITABLE ENGINE | 101 hp@2200 rpm | Heavy duty synchronized with 8 forward and 2 reverse speeds with high low range selector | 40 KMPH without load | 20.5 Mtrs | Four part slotted boom, 2 part hydraulically operated & synchronized and 4th part power extended | Front axle- 6035 kgs Rear axle- 10200 kgs Total weight- 16235kgs |
||
| F 210 | 20 Tonnes | ASHOK LEYLAND 4 CYLINDER WATER COOLED DIESEL ENGINE | 101 hp@2200 rpm | Heavy duty synchronized with 8 forward and 2 reverse speeds and high low drive selector for creep speed | 35 KMPH without load | 12.1-19.7 Mtrs | Four part slotted boom, 2 part hydraulically operated & synchronized and 4th part power extended | Front axle- 9655 kgs Rear axle- 10200 kgs Total weight- 19855 kgs |
||
| FX 300 | 30 Tonnes | ASHOK LEYLAND 6 CYLINDER WATER COOLED DIESEL ENGINE OR EQUIVALENT ENGINE | 133 hp@2300 rpm | Heavy duty synchronized with 8 forward and 2 reverse speeds and high low drive selector for creep speed | 40 KMPH without load | 11.1 Mtrs | Three part slotted boom with hydraulically operated synchronized extension(12 mtrs height) | Front axle- 10100 kgs Rear axle- 10200 kgs Total weight- 20300kgs |
||
| NX 360 | 20 T - Pick & Carry / 18 T - 360° Slew | ASHOK LEYLAND 4 CYLINDER WATER COOLED DIESEL ENGINE | 101 hp @2200 rpm | Heavy duty synchronized with 8 forward and 2 reverse speeds and high low drive selector for creep speed | 35 KMPH without load | 19 Mtrs | Four section boom with 2 sections hydraulically operated & synchronized and 4th section power extended | Front axle- 10040 kgs Rear axle- 10200 kgs Total weight- 20240kgs |
||
| CRAWLER CRANE | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | CAPACITY | BOOM LENGTH | JIB LENGTH | BOOM + JIB COMBINATION | BOOM LUFFING RANGE (WORKING) | MAIN BOOM RAISING SPEED | MAIN BOOM LOWERING SPEED | SLEW SPEED | TRAVEL SPEED | GRADEABILITY | ENGINE POWER | GROUND PRESSURE | TOTAL OPERATING WEIGHT | COUNTER WEIGHTS |

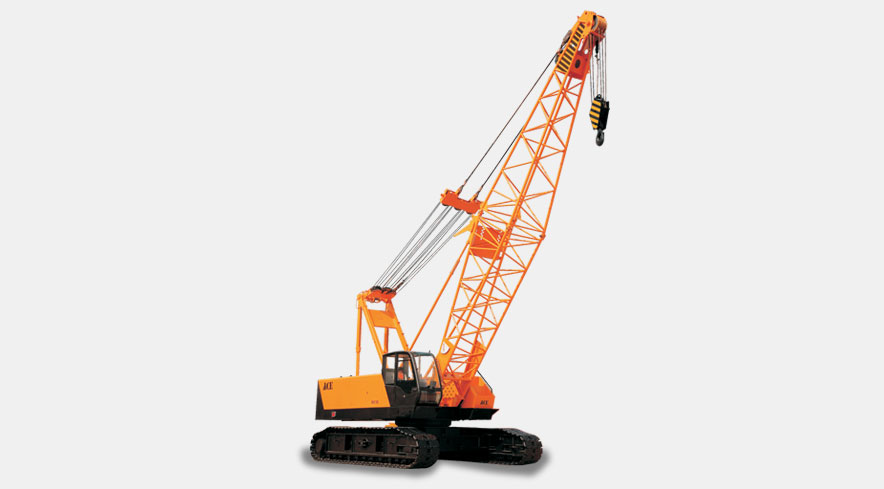

| ACX 400 | 40 TONS | 10-40 Mtrs | 6.1-15.25 Mtrs | 24+15.25 Mtrs | 30-80 degree | 60 mtrs/min | 60 mtrs/min | 3.7 rpm | 1.6 KMPH | 40% | 127KW @2200 rpm | 0,054 Mpa | 40 Tons | 14 Tons |
| ACX 750 | 75 TONS | 12-57 Mtrs | 9-18 Mtrs | 45+18 Mtrs | 30-80 degree | 55 mtrs/min | 55 mtrs/min | 3.1 rpm | 1.5 KMPH | 30% | 230hp @2200 rpm | 0.079 Mpa | 65 Tons (with basic boom) 75 Tons (with 57 mtrs boom) |
21.2 Tons |
| TOWER CRANES | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | JIB LENGTHS | FREE STANDING HEIGHT | MAX. HEIGHT | MAXIMUM LOAD LIFTING CAPACITY | TIP LOAD | |||||||||
| TC 5034 | 50 mtrs | 34 mtrs | 103.5 mtrs | 5 Tons | 1.3 Tons | |||||||||
| TC 5040 | 50 mtrs | 40 mtrs | 140 mtrs | 5 Tons | 1.3 Tons | |||||||||
| TC 5540 | 55 mtrs | 40 mtrs | 140 mtrs | 5 Tons | 1 Ton | |||||||||
| TC 5040-T | 50 mtrs | 40 mtrs | 140 mtrs | 5 Tons | 1.3 Tons | |||||||||
| TC 5540-T | 55 mtrs | 40 mtrs | 140 mtrs | 5 Tons | 1 Ton | |||||||||
| TC 6040 | 60 mtrs | 40 mtrs | 140 mtrs | 5 Tons | 1 Tons | |||||||||
| TC 6040-B | 60 mtrs | 40 mtrs | 140 mtrs | 5 Tons | 1.2 Tons | |||||||||
| TC 6544 | 65 mtrs | 34 mtrs | 221.3 mtrs | 8 Tons | 1.3 Tons | |||||||||
| TC 6552 | 65 mtrs | 32 mtrs | 200 mtrs | 10 Tons | 2 Tons | |||||||||
| TC 7052 | 70 mtrs | 32 mtrs | 205 mtrs | 12 Tons | 3 Tons | |||||||||
| TC 7054 | 70 mtrs | 34 mtrs | 202.5 mtrs | 16 Tons | 3.5 Tons | |||||||||
| TC 7059 | 70 mtrs | 39 mtrs | 230 mtrs | 20 Tons | 5.2 Tons | |||||||||
| TC TO74 | 70 mtrs | 74 mtrs | 275 mtrs | 25 Tons | 2.5 Tons | |||||||||
| LC 85 | 40 mtrs | 35 mtrs | 92.3 mtrs | 6 Tons | 1.5 Tons | |||||||||
| LC 120 | 45 mtrs | 27.5 mtrs | 87.5 mtrs | 8 Tons | 2.2 Tons | |||||||||
| LC 160B | 55 mtrs | 21.5 mtrs | 96.7 mtrs | 10 Tons | 2.1 Tons | |||||||||
| LC 228B | 55 mtrs | 40 mtrs | 121 mtrs | 12 Tons | 2.5 Tons | |||||||||

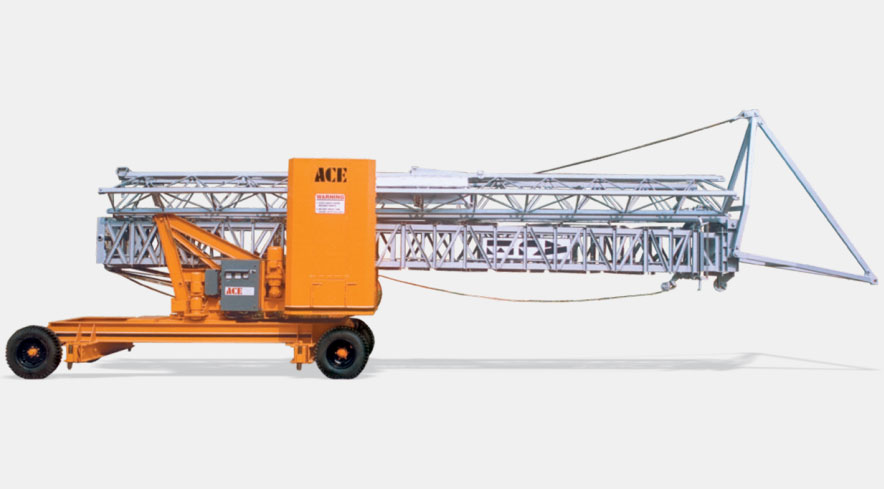

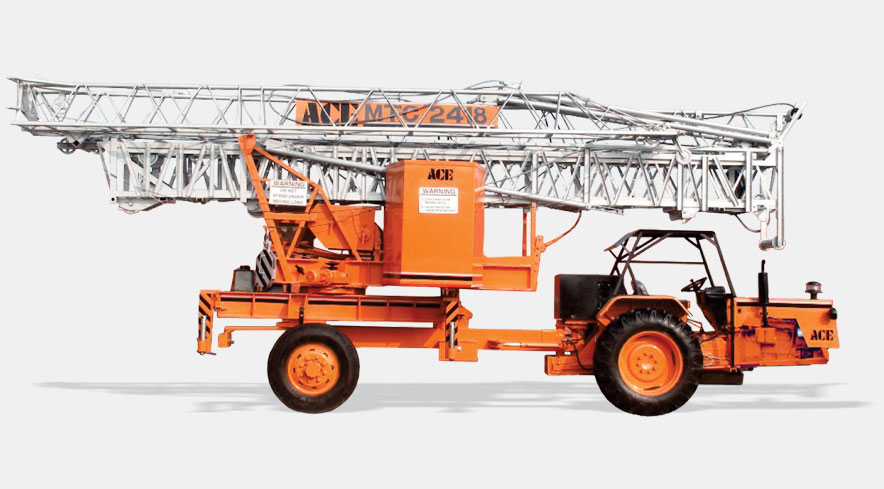

| MOBILE TOWER CRANES | |||
|---|---|---|---|
| Model | MTC 2418 | MTC 3625 | |
| Horizontal Jib Position | |||
| Height | 15.5 mtrs | 23 mtrs | |
| Length | 7.5 mtrs, 18 mtrs | 7.5 mtrs, 25 mtrs | |
| Capacity | 1600 kgs, 550 kgs | 2500 kgs, 800 kgs | |
| Raised Jib Position | |||
| Height | 24 mtrs | 36 mtrs | |
| Length | 7.2 mtrs, 15.8 mtrs | 7.2 mtrs, 21.6 mtrs | |
| Capacity | 1600 kgs, 550 kgs | 2500 kgs, 800 kgs | |
| Speed | |||
| Trolleying | 33 m/min | 30 m/min | |
| Hoisting | 15 m/min & 30 m/min | 20 m/min & 40 m/min | |
| Sleewing | 1 rpm | 1 rpm | |
| Electrical Motors | |||
| Trolleying | 1.5 H.P. | 1.5 H.P. | |
| Hoisting | 7.5 H.P. | 10.0 H.P. | |
| Sleewing | 2.0 H.P. | 2.0 H.P. | |
| Electrical Power | 10.25 KVA | 10.25 KVA | |
| Total Weight with Ballast | 13500 kgs | 17000 kgs | |
| Total Weght without Ballast | 8700 kgs | 8000 kgs | |
| Transportation Dimensions | |||
| Width | 2.5 mtrs | 2.5 mtrs | |
| Length | 10 mtrs | 11.5 mtrs | |
| Height | 3.9 mtrs | 3.2 mtrs | |
| Varient Model | MTC 2418 T (mounted on a towable trailer without prime mover) | N/A | |
| TM Series | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | LIFTING CAPACITY | ENGINE | Engine Power | Transmission | Top Speed | Lifting Height | Telescopic Boom | Operating Weight: | ||||||
| TM 250 | 25 TONS | Water cooled diesel engine | Six speed synchronized gear box | 60 KMPH | 10-31 Mtrs | Four part boom is fabricated from high tensile steel plates and is extendable from 10 to 31 m. | Front axle: 5950 kgs Rear axles- 18950 kgs Total weight- 24900 kgs |
|||||||
| TM 250C | 25 TONS | Ashok leyland water cooled diesel engine | 165 hp@2400 rpm | Six speed synchronized gear box | 60 KMPH | 10.2-22.2 mtrs | Three part boom is fabricated from high tensile steel plates and is extendable from 10.2 to 22.2 m. | Front axle: 5750 kgs Rear axles- 18300 kgs Total weight- 24050 kgs |
||||||
| TM 300 | 30 TONS | Water cooled diesel engine | Water cooled diesel engine | Six speed synchronized gear box | 60 KMPH | 10.2-32.1 mtrs | Four part boom is fabricated from high tensile steel plates and is extendable from 10.2 to 32.1 m. | Front axle: 6000 kgs Rear axles- 19000 kgs Total weight- 25000 kgs |
||||||
| TM 400 | 40 TONS | Ashok leyland or suitable, turbo charged, inter cooled diesel engine | 225 hp@2500 rpm | Nine speed synchronized gear box with crawler gear | 60 KMPH | 10.5-33 mtrs | Four part boom is fabricated from high tensile steel plates and is extendable from 10.5 to 33 m. | Front axle-1: 5880 kgs Front axle-2: 5870 kgs Rear axles- 19100 kgs Total weight- 30850 kgs |
||||||
| Lorry Loader Cranes | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Max. lifting moment | Max. hydraulic reach horizontally | Max. hydraulic reach vertically | Sleewing angle | Outrigger span normal | Outrigger span expanded | lifting hook | |||||||
| AB 63 | 6 Tm | 9 Mtrs | 12 Mtrs | 360 deg (cont.) | 2.05 m | 4.20 m | 3.15 Tm | |||||||
| AB 813 | 8 Tm | 9.6 Mtrs | 12.2 Mtrs | 360 deg (cont.) | 2.16 m | 4.50 m | 4.75 Tm | |||||||
| AB 113 | 10 Tm | 9.6 Mtrs | 12,2 Mtrs | 360 deg (cont.) | 2.16 m | 4.50 m | 4.75 Tm | |||||||
| AB 163 | 15 Tm | 10.2 Mtrs | 14.05 Mtrs | 360 deg (cont.) | 2.30 m | 5.10 m | 7 T | |||||||
| AB 203 | 19 Tm | 10.2 Mtrs | 14.05 Mtrs | 360 deg (cont.) | 2.30 m | 5.10 m | 7 T | |||||||
| SB 813 | 8 Tm | 7.5 Mtrs | 10.4 Mtrs | 360 deg (cont.) | 2.16 m | 4.5 m | 4.75 T | |||||||
| SB 123 | 12 Tm | 8.2 Mtrs | 11 Mtrs | 360 deg (cont.) | 2.3 m | 5.1 m | 6 T | |||||||
| SB 163 | 16 Tm | 9.9 Mtrs | 13.1 Mtrs | 360 deg (cont.) | 2.3 m | 5.1 m | 8 T | |||||||
| SB 203 | 20 TM | 9.9 Mtrs | 13.1 Mtrs | 360 deg (cont.) | 2.3 m | 5.1 m | 8 T | |||||||
| Backhoe Loaders | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Engine | Engine Power | Max. Torque | Transmission | Max. Speed | Operating Weight | Loader Bucket | Pay Load | Excavator Bucket | Tyres | Optional Equipment | Varient Model | ||
| KIRLOSKAR 4R1040T (BS-III) 4 cylinder turbo charged, water cooled diesel engine | 76 HP @2200 rpm | 300 Nm @1500 rpm | Single switch forward-reverse function for better loading application with 4 forward and 4 reverse speed | 40 KMPH | 7500 kgs | 1.1 cu.m. | 1850 kgs | 0.24 cu.m. | Front- 2WD: 9.00 - 16 -- 16PR 4WD: 12.5/80 --12 PR Rear- Standard: 16.90-28 --12 PR |
Forklift attachment Excavator bucket: 0.06 cu.m/0.09 cu.m/0.12 cu.m/0.18 cu.m & 0.30 cu.m 6 in 1 loader bucket Jaw bucket |
4 wheel drive with KIRLOSKAR 4R1040TA 4 cylinder inline water cooled turbo charged engine delivering 96 hp @2200 rpm | |||
| AX 130 | KIRLOSKAR 4R1040T (BS-III) 4 cylinder turbo charged, water cooled diesel engine or suitable equivalent engine | 76 HP @2200 rpm | 300 Nm @1500 rpm | Single switch forward-reverse function for better loading application with 4 forward and 4 reverse speed | 40 KMPH | 7500 kgs | 1 cu.m. | 1850 kgs | 0.24 cu.m. | Front- 2WD: 9.00 - 16 -- 16PR 4WD: 12.5/80 --12 PR Rear- Standard: 16.90-28 --12 PR |
Forklift attachment Excavator bucket: 0.06 cu.m/0.09 cu.m/0.12 cu.m/0.15 cu.m & 0.30 cu.m 6 in 1 loader bucket Jaw bucket |
4 wheel drive with KIRLOSKAR 4R1040TA 4 cylinder inline water cooled turbo charged engine delivering 96 hp @2200 rpm | ||
| ASD SERIES | ||||||
|---|---|---|---|---|---|---|
| Model | ||||||
| ASD 115 | ASD 124 | |||||
| STD | STD | STD | STD | STD | PD | |
| Operating Weight | 10700 kgs | 10900 kgs | 11100 kgs | 12000 kgs | 12200 kgs | 12400 kgs |
| Drum Module Weight | 6500 kgs | 6700 kgs | 6900 kgs | 7500 kgs | 7700 kgs | 7900 kgs |
| Tyre Module Weight | 4200 kgs | 4500 kgs | ||||
| Speed range working/ travelling | 0-8.4/0-29 KMPH | 0-6.8/0-13.2 KMPH | 0-8.4/0-29 KMPH | 0-6.8/0-13.2 KMPH | ||
| Total Applied Force (Max.) | 32391 kgs | 32592 kgs | 32791 kgs | 39304 kgs | 39504 kgs | 39704 kgs |
| Engine | KIRLOSKAR 4R1040TA (BS-III) 4 cylinder turbo charged, water cooled diesel engine | |||||
| Rated Power | 105 hp @2200 rpm | |||||
| Fuel Tank Capacity | 315 L | |||||
| Vibration | Variable displacement axial piston pump and fixed displacement motor | |||||
| Electrical system | 12V, DC | |||||
| ADD SERIES | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | Operating Weight | Drum Module Weight - Front | Drum Module Weight - Rear | Speed range working/ travelling | Total Applied Force (Max.) | Engine | Rated Power | Fuel Tank Capacity | Vibration | Electrical system |
| ADD 95 | 9100 kgs | 4390 kgs | 4710 kgs | 0-6/0-8 KMPH | 28658 kgs | KIRLOSKAR 4R1040TA (BS-III) 4 cylinder water cooled diesel engine | 75 hp @2200 rpm | 160 L | Variable displacement axial piston pump and fixed displacement motor on both drums | 12V, DC |
| ADD 34 | 3500 kgs | 1850 kgs | 1650 kgs | 0-6/0-12 KMPH | 14509 kgs | KIRLOSKAR HA394 (BS-III) 3 cylinders air cooled diesel engine or suitable equivalent make engine | 47 hp @2300 rpm | 60 L | Variable displacement pump and fixed displacement motor on both drums | 12V, DC |
